Please purchase the item according to the part number

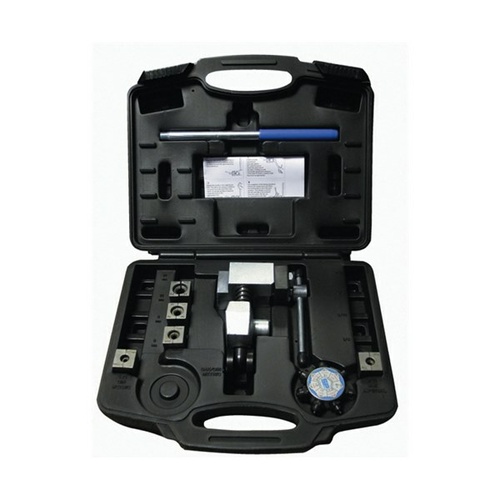

Item: SYKES PICKAVANT 270 Series Flaring Tool Kit - Intermediate Metric Kit 27002

Part Number: 27002

Brake Pipe Tools

Sykes-Pickavant offer a comprehensive range of tools to flare, bend, cut and form automotive brake and clutch pipe
Ideal for the workshop or DIY enthusiast

This popular flaring tool quickly and accurately produces convex and double lap flares to SAE and DIN standards on automotive brake and clutch pipes
Features a unique ??ial-a-Size??turret design and lever cam operation for quick flaring, see information over page
Screw clamp for accurate die alignment and automatic punch extraction from flare provide the easiest of operation
Five kits available to suit requirements

ATTRIBUTES

Spares	027011 - Body Assembly c/w 027014 Turret Assembly 027012 - Body Assembly c/w 027015 Turret Assembly 027014 - Turret Assembly c/w 3/16?? 1/4??& 6mm, 5/16??& 8mm, 3/8??& 10mm, 4.75mm Op1 & Op2 Punches 027015 - Turret Assembly c/w 3/16??& 4.75mm Op1 & Op2 Punches 027016 - Turret Assembly c/w 1/2??& 12mm Op1 & Op2 Punches 027018 - Turret Assembly c/w 4.75, 6, 8, 10 & 12mm Op1 DIN Punches 027025 - Die Clamp Screw c/w ????Bar 027027 - Handle
Specifications	Tube Outside Diameter SAE Convex Single: 3/16?? 4.75mm, 6mm, 8mm, 10mm DIN Convex Single: 4.75mm SAE Double: 3/16?? 4.75mm, 6mm, 8mm, 10mm

Spares

027011 - Body Assembly c/w 027014 Turret Assembly

027012 - Body Assembly c/w 027015 Turret Assembly

027014 - Turret Assembly c/w 3/16?? 1/4??& 6mm, 5/16??& 8mm, 3/8??& 10mm, 4.75mm Op1 & Op2 Punches

027015 - Turret Assembly c/w 3/16??& 4.75mm Op1 & Op2 Punches

027016 - Turret Assembly c/w 1/2??& 12mm Op1 & Op2 Punches

027018 - Turret Assembly c/w 4.75, 6, 8, 10 & 12mm Op1 DIN Punches

027025 - Die Clamp Screw c/w ????Bar

027027 - Handle

Specifications

Tube Outside Diameter

SAE Convex Single: 3/16?? 4.75mm, 6mm, 8mm, 10mm

DIN Convex Single: 4.75mm

SAE Double: 3/16?? 4.75mm, 6mm, 8mm, 10mm

SYKES-PICKAVANT

Since 1921 Sykes-Pickavant has been manufacturing and distributing premium quality service tools with numerous applications in the field of automotive, industrial, general engineering, maintenance and repair work.

Over ninety years on Sykes-Pickavant continues to innovate with new products while ensuring core ranges are modernised to stay at the forefront of technologies in vehicle and equipment design.

With over 450 part numbers now in the range including the renowned mechanical and hydraulic pullers, Sykes-Pickavant continues to offer the highest quality products relevant to today's industries.
