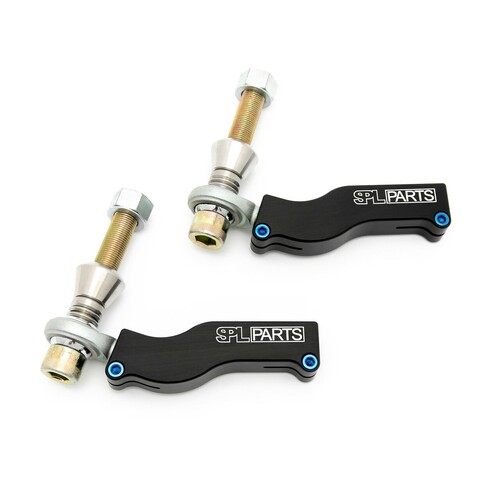

SPL Tie Rod Ends Bumpsteer Adjustable for BMW F2X/F3X (SPL TRE F3X)
SPL Tie Rod Ends Bumpsteer Adjustable for BMW F2X/F3X (SPL TRE F3X)
SPL Tie Rod Ends Bumpsteer Adjustable for BMW F2X/F3X (SPL TRE F3X)
SPL Tie Rod Ends Bumpsteer Adjustable for BMW F2X/F3X (SPL TRE F3X)
SPL Tie Rod Ends Bumpsteer Adjustable for BMW F2X/F3X (SPL TRE F3X)
SPL Tie Rod Ends Bumpsteer Adjustable for BMW F2X/F3X (SPL TRE F3X)
SKU: SPL-TRE-F3X

SPL Tie Rod Ends Bumpsteer Adjustable for BMW F2X/F3X (SPL TRE F3X)

SPL

$816.66

or 4 payments of $204.16 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item:BMW F2X/F3X Tie Rod Ends Bumpsteer Adjustable

BMW F2X/F3X  Front Tie Rod Ends (TRE) allow the tie rod end pivot to be relocated, which will correct bump steer resulting from modified caster or lower arm geometry, thus reducing lap times.  On cars that are lowered significantly, relocating the pivot point will also keep the tie rod end from binding, thereby preventing the inner tie rods from breaking or bending when racing.

Sold as a pair.

Made in the USA!


BMW F2X/F3X Adjustable Tie Rod Ends Feature:
•    ASTM A574 socket head cap bolts used for maximum articulation with minimum tensile strength of 170,000 psi
•    Custom CNC machined 6061-T6 Billet Aluminum curved turnbuckles to maximize articulation and allow full droop travel
•    Low friction Teflon lined FK Heim joints/rod ends
•    1/4" and 1/8" thick Stainless Steel bump steer spacers for precise adjustment, with tapered ends to provide more misalignment
•    Blue Anodized Titanium socket head cap screws for lightweight and robust clamp force

Applications:

2010+ F2X

2011+ F3X

Installation Instructions:



SKU SPL-TRE-F3X
Brand SPL
Shipping Weight 25.0000kg
Shipping Width 0.650m
Shipping Height 0.300m
Shipping Length 0.400m
