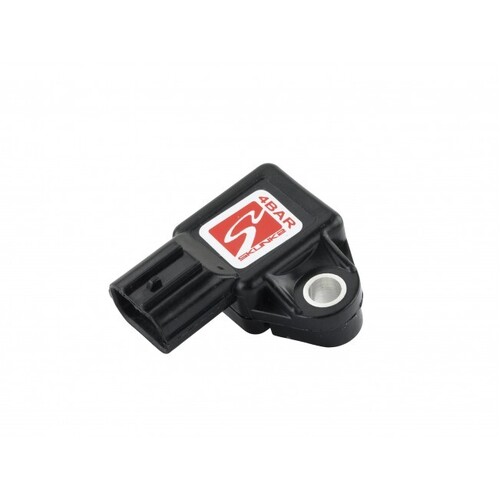

Skunk2 is proud to offer our very own 4 BAR MAP Sensor for the 2002-2011 Civic Si, 2002-2006 DC5, 2004-2008 TSX, 2003-2007 Accord, 2003-2011 Element, and 2002-2006 CRV for all your boosted K24A1/ K24A2/ K24A4/ and K24A8 engine needs!
- 2003 - 2017 Honda Accord (EX, EX-L, LX, LX-S, SE, Sport, Sport Special Edition)
- 2003 - 2011 Honda Element (EX, LX)
- 2002 - 2016 Honda CR-V (EX, EX-L, LX, SE, Touring)
- 2012 - 2015 Honda Crosstour (EX, EX-L)
Skunk2 is proud to partner with leading manufacturers DeatschWerks and Hondata to offer the finest fuel system components and Honda engine management systems available. DeatschWerks and Hondata components are the perfect complement to Skunk2 products and are now conveniently available directly from Skunk2.com.
A 1 BAR MAP sensor reports barometric pressure times one, which is approximately 14.7 psi or 30in/Hg (inches of mercury). 2 BAR or 3 BAR simply mean two or three times above barometric pressure. The sensor will measure each direction, vacuum or pressure.
For Reference:
1 BAR is for a normally aspirated engine
2 BAR will handle a forced induction up to 14.5 psi of boost
3 BAR will handle a forced induction up to 29.0 psi of boost
4 BAR will handle a forced induction up to 43.5 psi of boost
A vehicle's computer is calibrated to function at a specific level as programmed by the design engineer. A 2, 3, or 4 BAR MAP sensor placed in a system designed for a 1 BAR sensor will not function correctly; in fact the system will run very rich because of the low return voltage signal. A computer that is programmable is a must for any tuner attempting to boost their engine's output with the addition of a turbocharger and a 2, 3, or 4 BAR MAP sensor.
NOTE: Compatible with BRZ/ FRS/ FT86 and possibly many others
