Item: ROSS Dry Sump Kit (5 Stage) FOR Toyota 1JZ / 2JZ / 2JZ-VVTi -806501-107

Description

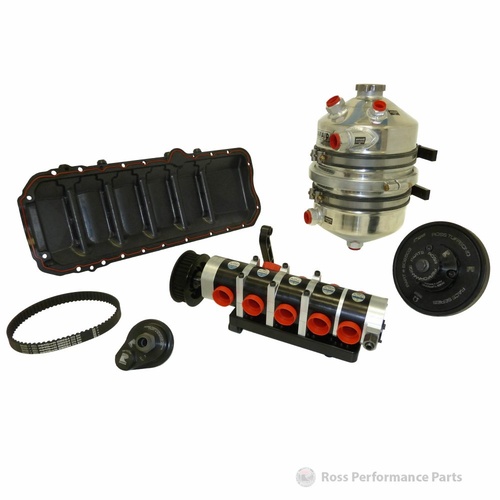

Kit includes the following:

• Toyota 1JZ / 2JZ Race Series Harmonic Damper (806501)
• Toyota 1JZ / 2JZ Billet Dry Sump (806001-11)
• Aviaid 5 Stage External Oil Pump ??LH Mounting with 1 x 1.75??Pressure and 4 x 1.75??Suction (9950511-4545)
• Aviaid Dry Sump Tank ??3 Gallon Capacity (Aviaid Oil Tank 3GAL)
• Toyota 1JZ / 2JZ Oil Pump Left Hand Mounting Bracket (806001-18)
• Toyota 1JZ / 2JZ Billet Lower Bellhousing Cover (806001-12)
• Toyota 1JZ OR 2JZ Billet Cam Covers (Pair) (806001-14 OR 806002-14 OR 806002-14-SP1)
• Toyota 1JZ / 2JZ Oil Return Adaptor (Dry Sump Conversion) (806001-25)
• Toyota 1JZ / 2JZ Billet Oil Pump Blanking Plate (806001-26)
• Universal Dry Sump Drive Adaptor with 19T HTD Pulley (991000-19HTD)
• 38T HTD Oil Pump Pulley with Pulley Shields (991038)
• 8mm HTD Oil Pump Drive Belt ??624mm x 20mm (993624-8M-20)

Note, to utilise this kit the air conditioning must be removed.

All Ross Performance Parts Dry Sump Kits can be customised/altered to suit your specific engine requirements.
