ROSS Crank / Cam Trigger (Twin Cam) 4WD Dry Sump Kit (4 Stage) 306501-110-1CH

Item: ROSS Crank / Cam Trigger (Twin Cam) 4WD Dry Sump Kit (4 Stage) FOR Nissan RB -306501-110-1CH

Description

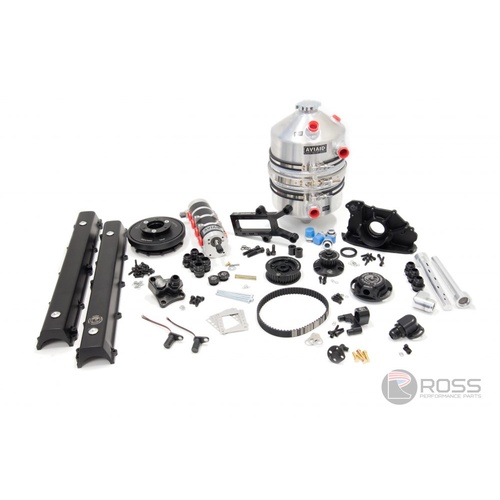

Kit includes the following:

• Nissan RB Race Series Harmonic Damper (306500, 306501, 306502 OR 306503)
• Nissan RB 12T Crank Trigger Disc to suit Race Series Harmonic Damper (306500-72-12T)
• Nissan RB Twin Cam Trigger (306000-73)
• Nissan RB Cam Angle Sensor Mount (306000-74)
• Nissan RB Crank Angle Sensor Mount (306000-75)
• Honeywell GT101 Hall Effect Sensor x 2 (992GT101) OR Cherry Hall Effect Sensor x 2 (992CHERRY)
• Aviaid 4 Stage External Oil Pump ??LH Mounting with 1 x 1.5??Pressure and 3 x 1.75??Suction (9950411-3845)
• Aviaid Dry Sump Tank ??3 Gallon Capacity (Aviaid Oil Tank 3GAL)
• Nissan RB (Twin Cam) Billet Cam Covers (Pair) (306000-14)
• Nissan RB26 Dry Sump Weld in Ports (306002-15)
• Nissan RB (Twin Cam) Head Drain Adaptor (306000-16)
• Nissan RB Oil Pump Left Hand Mounting Bracket (306000-18)
• Nissan RB Oil Return Adaptor (Dry Sump Conversion) (306000-25)
• Nissan RB Billet Oil Pump Blanking Plate (306000-26)
• Universal Dry Sump Drive Adaptor with 19T HTD Pulley (991000-19HTD)
• 38T HTD Oil Pump Pulley with Pulley Shields (991038)
• 8mm HTD Oil Pump Drive Belt ??576mm x 20mm (993576-8M-20)

This kit does not include a sump. Modification to your 4WD sump is required.

Note, to utilise this kit the air conditioning must be removed.

This Kit is designed to suit the following engines; Nissan RB20DET / Nissan RB25 NEO, Nissan RB25 R33, Nissan RB26 R32 GTR and Nissan RB26 R33 GTR / Nissan RB26 R34 GTR
