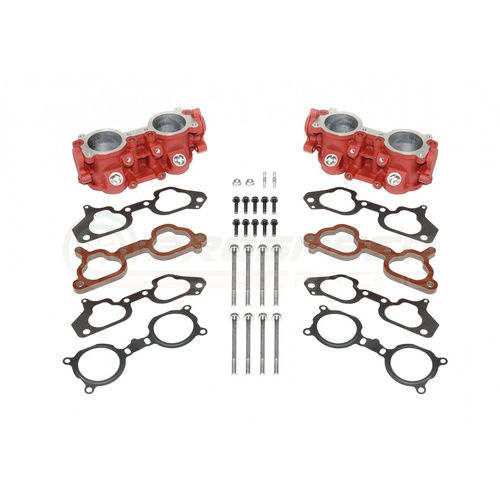

RCM Red Tumbler Generator Valve (TGV) Thermal Delete Kit
RCM Red Tumbler Generator Valve (TGV) Thermal Delete Kit
SKU: SEN1386

RCM Red Tumbler Generator Valve (TGV) Thermal Delete Kit

RCM

$849.95

or 4 payments of $212.49 with Info



In Stock


Calculate Shipping


Australia wide rate - $40.00


RCM Red Tumbler Generator Valve (TGV) Thermal Delete Kit

Tumbler Generator Valves (or "TGV" as they are most commonly referred to) can be found on Impreza WRX, Forester Turbo and Legacy GT models from 2001 onward. Their prime purpose is to reduce emissions from cold idle to meet standards governed by the EU emissions regulations (similar regulations also exist for both the US and Japan). Whilst this may be good for the environment it does little to aid the performance of your car and it's not uncommon for the sensors and motors connected to the TGV body to fail (leading to "limp mode", CEL lights and ultimately considerable expense in replacement parts and code clearing). The standard TGV's are similar to the design of your throttle body, encompassing twin "butterfly" valves in each tumbler housing to control air flow. Even when fully open these restrict the flow of air traveling into the cylinder head ports, reducing performance. This coupled with the possibility of sensor and motor failure mean there is good call for an improved alternative! RCM TGV Delete's do not contain any butterfly valves, sensors or motors and allow for a smooth, direct flow of air into the cylinder heads. Whilst it is necessary to initially adjust the ECU mapping to prevent a check engine light the results offer; increased performance, improved reliability and a much improved esthetic appearance (thanks to our crinkle black or red coated finish). Our "Thermal Kit" also has the added features of heat spacers included.These will help prevent heat from conducting into the alloy inlet manifold from the cylinder head, as a result the cooler and denser air will aid performance and keep temperatures stable under prolonged engine running. Due to the increase in manifold height when installing thermal spacers we also supply a replacement bolt kit, this ensures the OE thread depth into the cylinder heads is maintained and the manifold and TGV housing are kept secure on your engine. Also included are all necessary manifold gaskets offering a trouble free installation.

SKU SEN1386
Brand RCM
Shipping Weight 20.0000kg
Shipping Width 0.500m
Shipping Height 0.250m
Shipping Length 0.400m
