SKU: RCM2597

RCM 67mm Electric Throttle-Reversed Manifold

RCM

$2,579.95


In Stock


Calculate Shipping



Australia wide rate - $60.00

Description

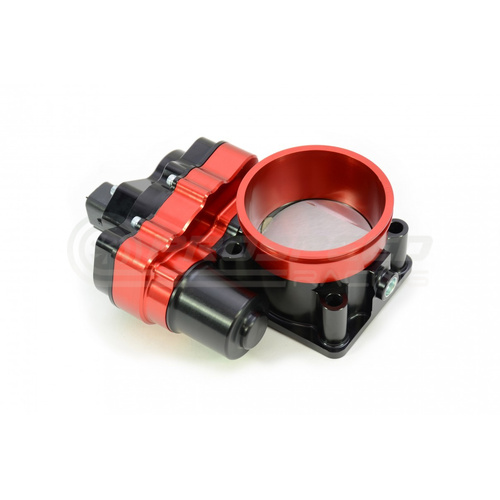

RCM 67mm Electric Throttle-Reversed Manifold

The RCM drive by wire electric throttle body has been designed and engineered specifically for Subaru applications, for vehicles using a reversed inlet manifold configuration. Manufactured from machined billet aluminum housings, it is fully assembled and ready to bolt directly to your reversed manifold, it is balanced and calibrated to a set idle condition. Patented shaftless technology, gaining up to 7% more airflow Failsafe spring return Operational speed <0.07 Seconds / 60 degrees Electrical Interface - Molex MX150-L Hall Effect TPS (dual redundancy) 0.5v to 4.5v Sensor Additional wiring will need to be assembled to suit your application with the connector supplied A throttle pedal potentiometer or pedal box will need to be used with this throttle assembly

Specifications

SKU RCM2597
Brand RCM
Shipping Weight 40.0000kg
Shipping Width 0.700m
Shipping Height 0.250m
Shipping Length 0.400m
