SKU: radium-20-0567-02

Radium Top Feed Upgrade Fuel Rails w/Bottom FPD Port - Subaru WRX/STI/Liberty/Forester

20-0567-02

$413.94

or 4 payments of $103.48 with Info



In Stock

Available Options


Calculate Shipping



Australia wide rate - $30.00 (ETA: 3 days)

Description

Note: Fuel Pulse Dampener (FPD) Not Included

Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish.

These fuel rails are designed specifically for OEM or equivalent fitment injectors. For injector height flexibility and thermal insulation, 2 sets of machined phenolic spacers are included. All injectors must use 11mm diameter upper O-rings just like the OEM Subaru injectors. Reference instruction manual for more information.

The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85.

These fuel rails have the same mounting and injector spacing as the Radium 20-0479-02 Top Feed Rails. However, these fuel rails feature a 8AN ORB port machined in the underside center of each fuel rail.

NOTE: The centre port bulge can create an interfere with early AVCS solenoids with the vertical connector (pictured above) found in the EJ207 and EJ205. If this is the case, use P/N: 20-0479-02.

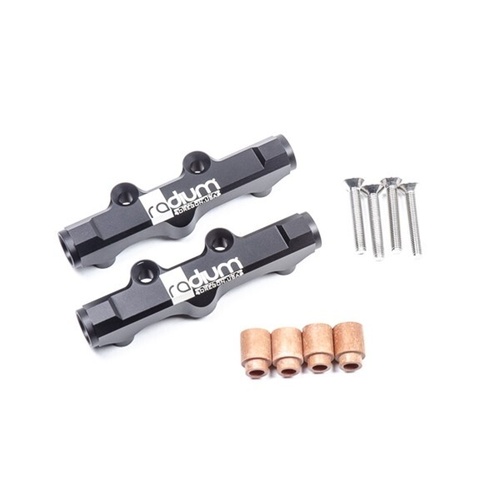

Included:

  • Black Anodized Laser Etched Aluminum Fuel Rails (x2)
  • Phenolic Thermal Insulating Press-In Spacers, 20mm (x4)
  • Stainless Steel M8x1.25 Mounting Bolts (x4)

The fuel rail ports are tapped for 8AN ORB but fittings are not included.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.



Vehicle Fitment:

  • 2001-2014 Subaru WRX EJ20/EJ25 (w/Top Feed Injectors and NOT fitted with AVCS Solenoid Pictured Above)
  • 2001-2020 Subaru STI EJ20/EJ25 (w/Top Feed Injectors and NOT fitted with AVCS Solenoid Pictured Above)
  • 2003-2013 Subaru Forester XT EJ25 (w/Top Feed Injectors and NOT fitted with AVCS Solenoid Pictured Above)
  • 2007-2009 Subaru Liberty GT EJ25 (w/Top Feed Injectors and NOT fitted with AVCS Solenoid Pictured Above)

Specifications

SKU radium-20-0567-02
Brand RADIUM
Shipping Weight 10.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
