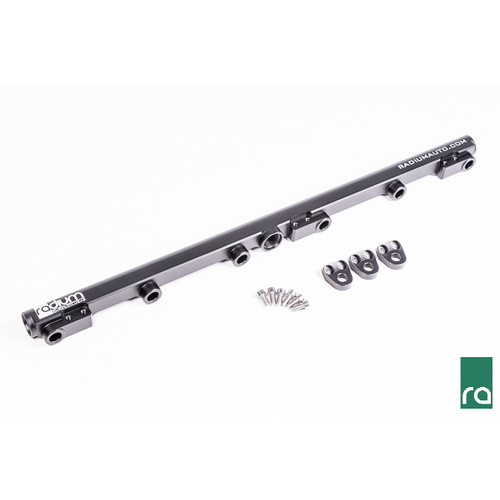

Item: Radium Top Feed Fuel Rail - Toyota 1JZ-GTE VVTi

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from 6063 aluminum, black anodized, and laser etched for a high quality surface finish. For flexibility, the fuel rail features three 8AN ORB ports and is compatible with all fuel types including popular alcohol mixtures such as E85.

NOTE: This fuel rail is compatible with early model 1JZ-GTE VVT-i engines only. It is NOT compatible with late model 1JZ-GTE VVT-i engines as the fuel rail creates an interference with the ETCS-i throttle body drive-by-wire motor.

The Radium fuel rail is compatible with the OEM 1JZ-GTE VVT-i top-feed fuel injectors and any aftermarket injectors that fit the OEM fuel rail. Injector bores are 11mm. The fuel rail re-uses the factory mounting bolts and plastic spacers. Make sure these are present before beginning installation. To reuse the OEM fuel pressure regulator, select the 14-0285 8AN ORB to M12x1.25mm Fitting (shown above).


INCLUDED:

• Black Anodized Laser Etched Aluminum Fuel Rail
• Black Anodized Aluminum Mounting Feet (x3)
• Stainless Steel Mounting Feet Bolts (x6)
