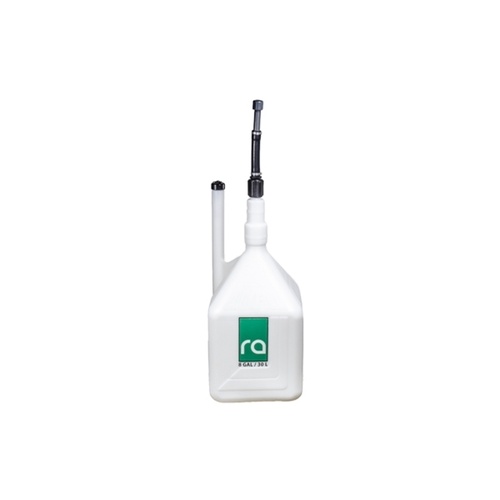

Item: Radium Quick Fill Dump Can - 8Gal Standard Filler

Dump cans are used in motorsports when quick fuel filling pit stops are essential. The main difference between a "dump can" and a common "fuel jug" is the vent architecture. For quick filling, air entering the can must replace the exiting fuel at the same rate. If not, a vacuum will create a flow restriction and produce a "gurgle" or "chug" effect. Fortunately, the large 1.675" OD vent tube comes from the bottom minimizing refueling leaks. The vent tube is also typically used for filling the dump can.

Radium Engineering dump cans are blow-molded in USA from high density polyethylene which is safe for all fuel types (leaded gas, unleaded gas, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The external rectangular shape allows for easy storing and securing. The integrated vent handle is comfortable and ergonomic making refueling painless. An anodized billet aluminum cap with a rubber flip vent valve is standard with all dump cans.

The dump can comes preassembled with a sealing cap for the molded 1" NPT male spout. If cut, the pour spout can be enlarged from 1.25" to 2.25" to 3" OD. For more spout info and options, see specifications.

NOTE:

• To utilize all 8 gallons, it is recommended to use the preassembled standard rubber flip vent valve. This will drastically slow the filling process but prevent any fuel from accidentally making its way out of the vent when the dump can is completely full. The entire vent cap can be removed for quick filling, but some fuel loss may occur.

20-0497-00 QUICK FILL DUMP CAN, 8 GALLON, STANDARD FILLER

This option works with all OEM vehicle fillers. But unlike typical fuel jugs, the Radium Engineering dump can fills 67% faster thanks to the large vent design.

• Spout Outer Diameter: 0.84"
• Spout Insertion Length: 3"
• Total Height: 38" (+/-1")
