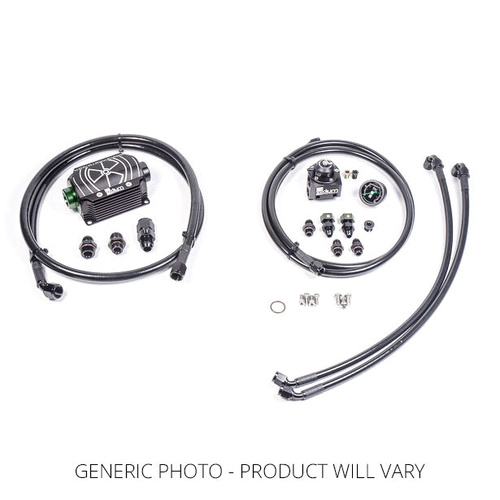

This kit permits an independant port injection fuel system. PTFE hoses, -AN adapter fittings, 1:1 pressure regulator, pressure gauge, and a fuel filter (stainless -03 or microglass -05) are all provided. These components mount to the LH side of the engine using OEM threaded bosses on the frame rail. No drilling or permanent modifications are required. The Radium Engineering fuel hanger surge tank is recommended to feed this system.

INCLUDED

• Fuel Filter (-03 Stainless or -05 Microglass)
• Fuel Pressure Regulator, 1:1
• Fuel Pressure Gauge, 0-100psi
• Crimped 6AN PTFE Hoses (x3)
• 6AN Fuel Rail Fittings (x2)
• Fuel Rail Plugs (x2)
• Mounting Bracket

VEHICLE COMPATIBILITY

• 06-15 Audi R8 Type42 (all GEN-1 V10 trims with Radium 20-0865 Port Injection Fuel Rail Kit)
• 08-13 Lamborghini Gallardo LP550-2 (all trims with Radium 20-0865 Port Injection Fuel Rail Kit)
• 08-13 Lamborghini Gallardo LP560-4 (all trims with Radium 20-0865 Port Injection Fuel Rail Kit)
• 08-13 Lamborghini Gallardo LP570-4 (all trims with Radium 20-0865 Port Injection Fuel Rail Kit)

NOTES:

• 1. Not compatible with the 1st generation Lamborghini Gallardo 5.0L engine.
• 2. Not compatible with the 2nd generation Audi R8 Type-4S upper or lower intake manifold.
• 3. Not compatible with the Lamborghini Huracan upper or lower intake manifold.
