Item: Radium/Injector Dynamics 1050X Fuel Rail Conversion Kit Suit Subaru WRX /STI GC8 92-00

Depending on the vehicle's country of origin, this fuel rail kit is compatible with the following Subaru models:

GC8 1992-2000

Each rail features a large internal diameter bore to suit even the most fuel hungry engines. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish. All 3 ports on each fuel rail are tapped with -8AN ORB.

For thermal insulation, machined phenolic spacers and washers are included to completely isolate the fuel rail from heat transfer via the TGV housings and mounting bolts.

The fuel rail kits are compatible with all fuel types including popular alcohol mixtures such as E85.

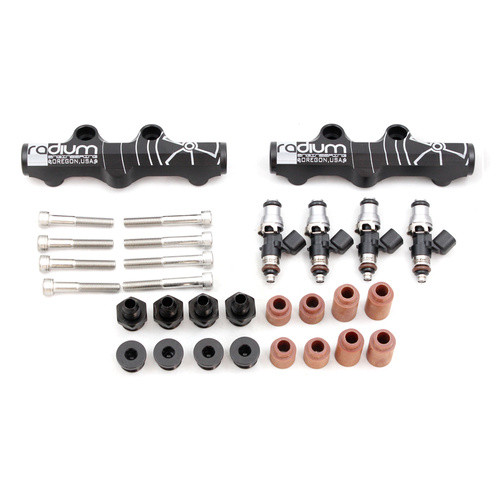

-Black Anodized Laser Etched Aluminum Fuel Rails (x2)
-Phenolic Thermal Insulating Press-In Spacers, Tall (x4)
-Phenolic Thermal Insulating Press-In Spacers, Short (x4)
-Phenolic Thermal Insulating Press-In Bolt Washers (x4)
-Stainless Steel M8x1.25 Mounting Bolts, Long (x4)
-Stainless Steel M8x1.25 Mounting Bolts, Short (x4)



The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference. Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels. Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors. Improved internal flow path increases output by 5% without sacrificing low flow performance. Stronger magnetic circuit offers stable operation up to 10 bar. Replaceable inlet filter extends service life. To learn more about the nature and development of the X-Series injectors, follow this link.
