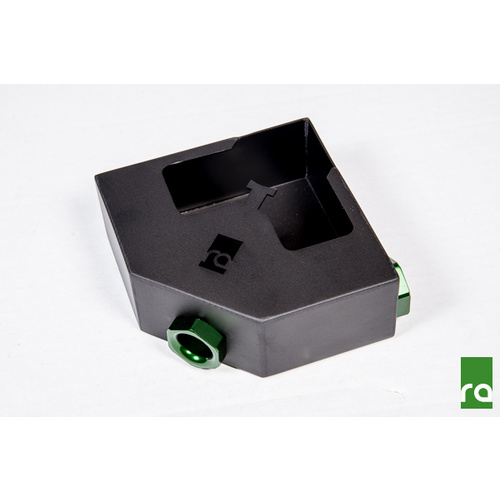

Radium In-Tank Fuel Collector Box, Single Valve

This collector box is used in fuel cells or large fill plate tanks to protect against fuel slosh. The in-tank fuel pump or pickup tube is inserted into the container and the check valves serve as trap doors keeping fuel contained in the box no matter what direction the vehicle is shifting. The 20-0151 Check Valves feature a large 1" ball for maximum flow. The 2 piece check valve housings are machined from billet 6061 aluminum and anodized for corrosion resistance. Unlike round drilled hole variations, this design features full travel slots to prevent the ball from getting stuck in the hole and to promote quick filling. For more information, go .

This collector box is fabricated from 5052 aluminum, TIG welded, media blasted, and bright dipped anodized for optimal corrosion resistance. Depending on the application, the small tab on top of the 20-0150 box can be hand-formed in order to secure a pump

or pickup tube using a clamp or zip tie.

All materials are compatible to be used in gasoline and all alcohol blends such as E85. For the ultimate in fuel starvation protection, this product compliments the  .

Options

The 20-0150 In-Tank Fuel Collector Box, Triple Valve includes 3 billet check valves and can be orientated in any direction.


The 20-0213 In-Tank Fuel Collector Box, Single Valve includes 1 billet check valve and should be orientated so it faces forward inside the fuel tank.
