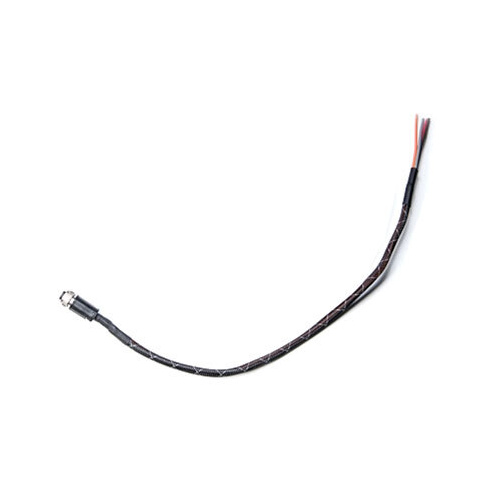

Item: Radium Fuel Surge Tank Wiring Harness - Flying Leads w/Connector (External Dual Pump)

These wiring harnesses are used in multiple Radium Engineering products including fuel surge tanks, fuel cells, etc. For a complete bulkhead mating connection, select one internal and one external harness from the lists above. External harness wires use 24" long 10AWG TXL insulated wires. Internal harness use 12-14AWG PTFE insulated wires.

All panels must be 0.06-0.18 inches thick. See the drawing above for cutouts for each bulkhead connector. A gasket is included on the large connector and the small connector includes an O-ring for sealing against panel surface.

If wiring a connector to a Radium Engineering internal harness, the pinouts are above.
