Radium Catch Can Kit, Crankcase, 2013+ Focus ST

An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from high performance driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance. Read about all the benefits and functionality of the Radium Engineering's popular catch cans here:


All Radium catch cans provide the following benefits:
-Effectively raises the octane and increased engine performance from cleaner inlet air
-Prevents oil buildup in the intake and intercooler system walls, throttle body, intake manifold, etc.
-Excessive oil collection can be an indicator of a damaged engine.
-Lowers hydrocarbon emissions
-Capacity: 6 fluid ounces each

2013+ Focus EcoBoost Catch Can Kit Details:
The Radium Engineering catch can kits are the most functional and integrated kits on the market. The catch cans mount using factory holes and integrate perfectly with the surrounding components. These two oil catch cans (PCV side and Crankcase side) function completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required.

The 20-0315 PCV Catch Can Kit, Ford Focus is used in both the ST and RS models with the EcoBoost engine. It mounts on the front left bulkhead. For clearance purposes, Focus ST owners will need .

This catch can runs inline with the PCV (positive crankcase ventilation) valve and retains it's factory function. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: Because the Radium catch cans are pressure sealed, they are great for this boosted application so intake manifold connection is permitted.

The 20-0316 and 20-0357 Crankcase Catch Can Kits mount on the high pressure fuel pump (HPFP) in the back LH side of the engine bay. For clearance purposes, Focus ST owners will need .

This catch can runs inline with the crankcase breather port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this hose will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance. Radium Engineering P/N: 20-0316 shown above and below.
Radium Engineering P/N: 20-0357 shown below.

Each kit includes the following:
-Anodized oil catch can with integrated condenser and dipstick
-Anodized laser cut Focus specific mounting bracket
-Anodized aluminum -AN adapter fittings and hose ends
-Enough PCV hose for custom applications
-Stainless steel mounting hardware

For the ultimate in engine protection, Radium recommends a Dual Catch Can Kit.

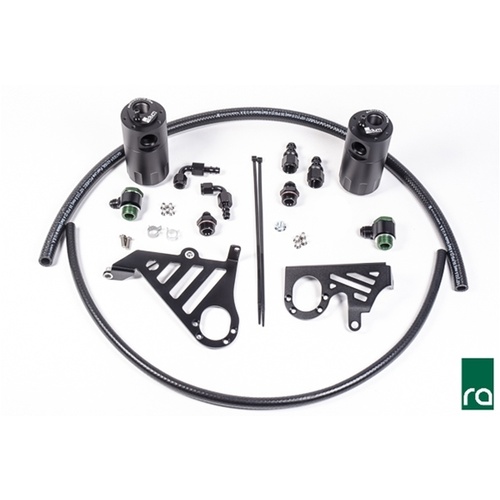

This kit utilizes both the "Crankcase" and "PCV" catch can kits. Radium 20-0328 shown below (20-0358 is similar).

PETCOCK DRAIN KIT OPTION

-4AN ORB to barb fitting
-Nylon ??ÔÇØ barb ball valve
-6ft 1/4" PCV hose

This kit can be used to remotely drain the catch cans without the need to unscrew the canister body.
