Radium AOS/Catch Can suit EVO 7-9 Crankcase VTA
Radium AOS/Catch Can suit EVO 7-9 Crankcase VTA
SKU: radium-20-0182

Radium AOS/Catch Can suit EVO 7-9 Crankcase VTA

20-0182

$563.44

or 4 payments of $140.86 with Info



In Stock


Calculate Shipping


Australia wide rate - $30.00 (ETA: 3 days)


Item: Radium AOS/Catch Can suit EVO 7-9 Crankcase VTA

The Vent-To-Atmosphere Catch Can Kit is an open system used for high flowing, high horsepower applications. The closed system options listed above are adequate for most vehicles, however, some loosely built race engines operate with a large amount of boost pressure and the OEM hoses can become too restrictive from excessive blow by.

This VTA kit is intended to be used by itself as the only crankcase vent point. It replaces the stock PCV hose and PCV valve with a -10AN fitting and 5/8" ID hose and allows the gasses to vent through the catch can to the atmosphere. This kit installs on the LH strut tower.
Because this kit mounts the catch can behind the battery, there is a chance that there might not be enough room for the included breather filter if a large battery is used.

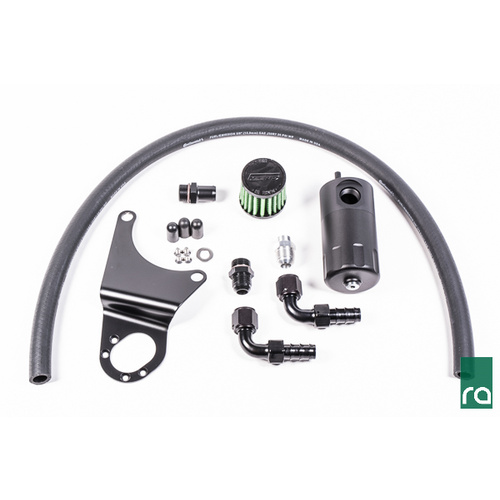

Contents of kit 20-0182 shown below:



20-0182 Crankcase VTA Catch Can Kit:
-Billet oil catch can with integrated condenser and dipstick
-Laser cut powder coated LH mounting bracket
-Enough -10AN (5/8") black PCV hose for all applications
-Radium 14-0136 -10AN Hose End, 2pc 90deg for push-lok hose
-Radium 14-0213 -10AN Hose End, 90deg push-lok hose end
-Radium 20-0050 barb fitting with air filter breather
-Radium 14-0274 10AN male valve cover press-in fitting
-Vacuum caps for 3/8" barbs
-Stainless steel mounting hardware

SKU radium-20-0182
Brand RADIUM
Shipping Weight 10.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
