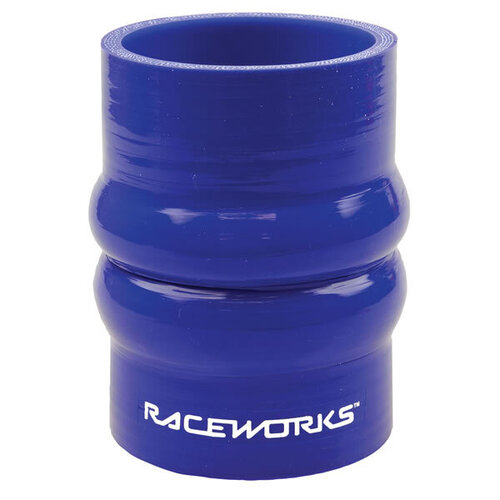

Raceworks Silicone Double Hump Hose 4'' (102mm) Blue  SHH-400BE
Raceworks Silicone Double Hump Hose 4'' (102mm) Blue  SHH-400BE
Raceworks Silicone Double Hump Hose 4'' (102mm) Blue  SHH-400BE
Raceworks Silicone Double Hump Hose 4'' (102mm) Blue  SHH-400BE
Raceworks Silicone Double Hump Hose 4'' (102mm) Blue  SHH-400BE
Raceworks Silicone Double Hump Hose 4'' (102mm) Blue  SHH-400BE
SKU: SHH-400BE

Raceworks Silicone Double Hump Hose 4'' (102mm) Blue SHH-400BE

FITTING

$33.99

or 4 payments of $8.50 with Info



In Stock


Calculate Shipping


Australia wide rate - $25.00 (ETA: 3 days)


Item: Raceworks Silicone Double Hump Hose 4'' (102mm) BlueSHH-400BE

Raceworks is a range of High Performance AirFuel, and Fluid Management Components.

Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.

Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.

Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

Raceworks Silicone Hose is manufactured from the highest grade materials, to ensure that the strictest OEM and performance specifications are surpassed. All hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi (see application table for individual ratings) and a temperature range of -40 to +180 degrees Celsius. Available in blue and black, all hoses are UV, ozone and electrochemically resistant to avoid fading and separation. All Raceworks products come with a 2 year warranty.

NOTE: Silicone hose is not fuel safe



Dia. Imp. Dia. Metric Part # Blue Part # Black Lth mm Min. Burst Pres.
2.00ÔÇØ 51mm SHH-200BE SHH-200BK 102mm 218 PSI
2.25ÔÇØ 57mm SHH-225BE SHH-225BK 102mm 174 PSI
2.50ÔÇØ 63mm SHH-250BE SHH-250BK 102mm 174 PSI
2.75ÔÇØ 70mm SHH-275BE SHH-275BK 102mm 174 PSI
3.00ÔÇØ 76mm SHH-300BE SHH-300BK 102mm 174 PSI
3.25ÔÇØ 83mm SHH-325BE SHH-325BK 102mm 145 PSI
3.50ÔÇØ 89mm SHH-350BE SHH-350BK 102mm 145 PSI
3.75ÔÇØ 95mm SHH-375BE SHH-375BK 102mm 145 PSI
4.00ÔÇØ 102mm SHH-400BE SHH-400BK 102mm 145 PSI

SKU SHH-400BE
Brand RACEWORKS
Shipping Weight 5.0000kg
Shipping Width 0.360m
Shipping Height 0.200m
Shipping Length 0.300m
