Raceworks Deutsch HD30 24-21 Kit CPS-509
FITTING
Description
Item: Raceworks Deutsch HD30 24-21 KitCPS-509
Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.
Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.
Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.
Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

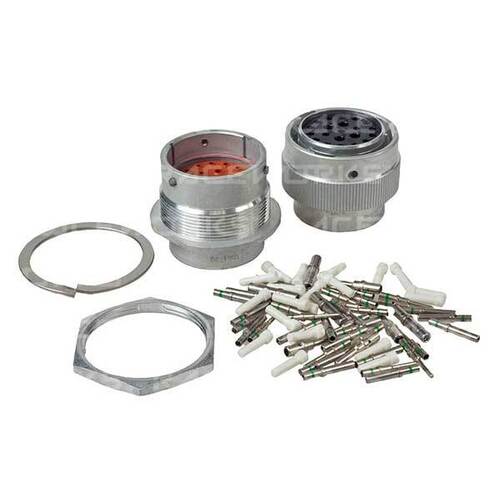

Raceworks Deutsch HD30 24-21 Kit
24-21. Shell size 24. 4 x Size 12 Contacts and 17 x Size 16 Contacts. Blue Ring Extra Thin Wire Seal. For use with Extra Thin Wall Wire (Recommended O.D of 2.46-4.01mm for Size 12 and 1.35-3.05mm for Size 16). Can be used with thicker wall wire, but some assembly grease must be used.
| Size 12 Contacts | |
|---|---|
| Wire Size | 12-14 AWG (2.0-3.0 mm^2) |
| Recommended Strip Length | 5.6-7.2mm |
| Current Rating | 25A @ 125deg C |
| Size 16 Contacts | |
|---|---|
| Wire Size | 14 AWG (1.0-2.0mm^2) |
| Recommended Strip Length | 6.4-8.0mm |
| Current Rating | 13A @ 125deg C |
| Series | HD30 |
|---|---|
| Housing | Aluminium |
| Seal | Silicone Rubber |
| Shock | 50G |
| Vibration | 20G rms 10 – 2000Hz |
| Operating Temperature | -55deg C to 125deg C |
Specifications
| SKU | CPS-509 |
| Brand | RACEWORKS |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
