Item: Raceworks Deutsch HD30 24-16 KitCPS-505
Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.
Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.
Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.
Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

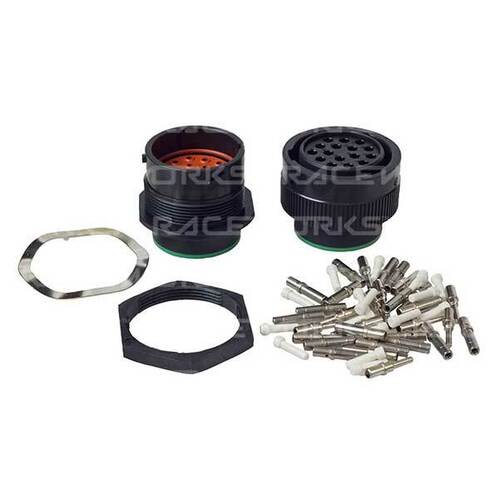

Raceworks Deutsch HD30 24-16 Kit
24-16. Shell size 24. 16 x Size 12 Contacts. Green Ring Normal Wire Seal. For use with Standard Insulation Wire (Recommended O.D of 3.40-4.32mm)
| Size 12 Contacts | |
|---|---|
| Wire Size | 12-14 AWG (2.0-3.0 mm^2) |
| Recommended Strip Length | 5.6-7.2mm |
| Current Rating | 25A @ 125deg C |
| Series | HD30 |
|---|---|
| Housing | Aluminium |
| Seal | Silicone Rubber |
| Shock | 50G |
| Vibration | 20G rms 10 – 2000Hz |
| Operating Temperature | -55deg C to 125deg C |
| SKU | CPS-505 |
| Brand | RACEWORKS |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
