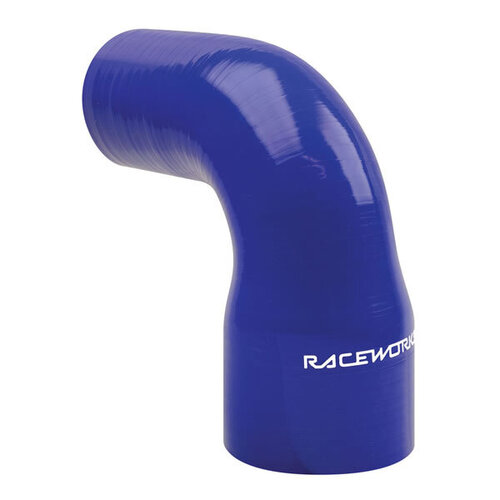

Raceworks 90 Degree Silicone Reducer Elbow 3-3.25'' (76-82mm) Blue 3"-4" SHE-090-300400BE

Calculate Shipping

Australia wide rate - $25.00 (ETA: 3 days)

Item: Raceworks 90 Degree Silicone Reducer Elbow 3-3.25'' (76-82mm) BlueSHE-090-300400BE

Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.

Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.

Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.

Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

Raceworks Silicone Hose is manufactured from the highest grade materials, to ensure that the strictest OEM and performance specifications are surpassed. All hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi (see application table for individual ratings) and a temperature range of -40 to ? degrees Celsius. Available in blue and black, all hoses are UV, ozone and electrochemically resistant to avoid fading and separation. All Raceworks products come with a 2 year warranty.

NOTE: Silicone hose is not fuel safe

Dia. Imp.	Dia. Metric	Part # Blue	Part # Black	Lth mm	Min. Burst Pres.	Bend Radius
1.00" – 1.25"	25-32mm	SHE-090-100125BE	SHE-090-100125BK	102x102mm	305 PSI	60mm
1.00" – 1.50"	25-38mm	SHE-090-100150BE	SHE-090-100150BK	102x102mm	305 PSI	60mm
1.50" – 1.75"	38-44mm	SHE-090-150175BE	SHE-090-150175BK	102x102mm	305 PSI	60mm
1.50” – 2.00”	38-51mm	SHE-090-150200BE	SHE-090-150200BK	125×125mm	218 PSI	60mm
1.75” – 2.00”	44-51mm	SHE-090-175200BE	SHE-090-175200BK	125×125mm	218 PSI	60mm
2.00” – 2.25”	51-57mm	SHE-090-200225BE	SHE-090-200225BK	125×125mm	218 PSI	60mm
2.00” – 2.50”	51-63mm	SHE-090-200250BE	SHE-090-200250BK	125×125mm	218 PSI	60mm
2.00” – 3.00”	51-76mm	SHE-090-200300BE	SHE-090-200300BK	125×125mm	174 PSI	60mm
2.25” – 2.50”	57-63mm	SHE-090-225250BE	SHE-090-225250BK	125×125mm	174 PSI	60mm
2.25” – 2.75”	57-70mm	SHE-090-225275BE	SHE-090-225275BK	125×125mm	174 PSI	60mm
2.50" – 2.75"	63-70mm	SHE-090-250275BE	SHE-090-250275BK	125x125mm	174 PSI	63mm
2.50” – 3.00”	63-76mm	SHE-090-250300BE	SHE-090-250300BK	125×125mm	174 PSI	63mm
2.75” – 3.00”	70-76mm	SHE-090-275300BE	SHE-090-275300BK	125×125mm	174 PSI	70mm
3.00” – 3.25”	76-83mm	SHE-090-300325BE	SHE-090-300325BK	145x145mm	145 PSI	76mm
3.00” – 3.50”	76-89mm	SHE-090-300350BE	SHE-090-300350BK	145x145mm	145 PSI	76mm
3.00” – 4.00”	76-102mm	SHE-090-300400BE	SHE-090-300400BK	145x145mm	174 PSI	76mm
3.25” – 4.00”	83-102mm	SHE-090-325400BE	SHE-090-325400BK	145x145mm	145 PSI	83mm
3.50” – 4.00”	89-102mm	SHE-090-350400BE	SHE-090-350400BK	145x145mm	145 PSI	89mm
4.00” – 5.00”	102-127mm	SHE-090-400500BE	SHE-090-400500BK	145x145mm	145 PSI	102mm
