SKU: SHE-090-300350BE

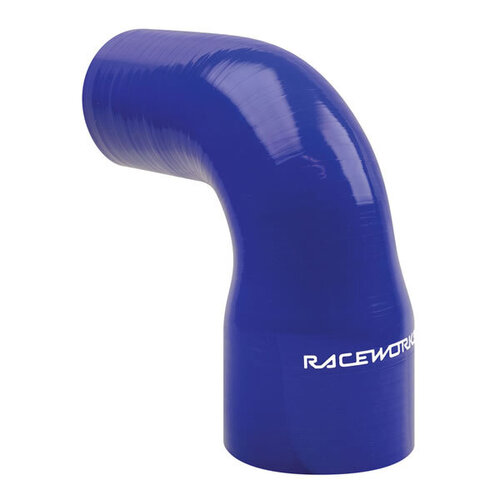

Raceworks 90 Degree Silicone Reducer Elbow Blue 3"-3.5" SHE-090-300350BE

FITTING

$32.50

or 4 payments of $8.12 with Info



In Stock


Calculate Shipping



Australia wide rate - $25.00 (ETA: 3 days)

Description

Item: Raceworks 90 Degree Silicone Reducer Elbow Blue 3"-3.5" BlueSHE-090-300350BE

Raceworks is a range of High Performance AirFuel, and Fluid Management Components.

Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.

Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.

Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

Raceworks Silicone Hose is manufactured from the highest grade materials, to ensure that the strictest OEM and performance specifications are surpassed. All hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi (see application table for individual ratings) and a temperature range of -40 to ? degrees Celsius. Available in blue and black, all hoses are UV, ozone and electrochemically resistant to avoid fading and separation. All Raceworks products come with a 2 year warranty.

NOTE: Silicone hose is not fuel safe



Dia. Imp. Dia. Metric     Part # Blue Part # Black Lth mm Min. Burst Pres.     Bend Radius
1.00" – 1.25"    25-32mm SHE-090-100125BE     SHE-090-100125BK     102x102mm     305 PSI 60mm
1.00" – 1.50" 25-38mm SHE-090-100150BE SHE-090-100150BK 102x102mm 305 PSI 60mm
1.50" – 1.75" 38-44mm SHE-090-150175BE SHE-090-150175BK 102x102mm 305 PSI 60mm
1.50” – 2.00” 38-51mm SHE-090-150200BE SHE-090-150200BK 125×125mm 218 PSI 60mm
1.75” – 2.00” 44-51mm SHE-090-175200BE SHE-090-175200BK 125×125mm 218 PSI 60mm
2.00” – 2.25” 51-57mm SHE-090-200225BE SHE-090-200225BK 125×125mm 218 PSI 60mm
2.00” – 2.50” 51-63mm SHE-090-200250BE SHE-090-200250BK 125×125mm 218 PSI 60mm
2.00” – 3.00” 51-76mm SHE-090-200300BE SHE-090-200300BK 125×125mm 174 PSI 60mm
2.25” – 2.50” 57-63mm SHE-090-225250BE SHE-090-225250BK 125×125mm 174 PSI 60mm
2.25” – 2.75” 57-70mm SHE-090-225275BE SHE-090-225275BK 125×125mm 174 PSI 60mm
2.50" – 2.75" 63-70mm SHE-090-250275BE SHE-090-250275BK 125x125mm 174 PSI 63mm
2.50” – 3.00” 63-76mm SHE-090-250300BE SHE-090-250300BK 125×125mm 174 PSI 63mm
2.75” – 3.00” 70-76mm SHE-090-275300BE SHE-090-275300BK 125×125mm 174 PSI 70mm
3.00” – 3.25” 76-83mm SHE-090-300325BE SHE-090-300325BK 145x145mm 145 PSI 76mm
3.00” – 3.50” 76-89mm SHE-090-300350BE SHE-090-300350BK 145x145mm 145 PSI 76mm
3.00” – 4.00” 76-102mm SHE-090-300400BE SHE-090-300400BK 145x145mm 174 PSI 76mm
3.25” – 4.00” 83-102mm SHE-090-325400BE SHE-090-325400BK 145x145mm 145 PSI 83mm
3.50” – 4.00” 89-102mm SHE-090-350400BE SHE-090-350400BK 145x145mm 145 PSI 89mm
4.00” – 5.00” 102-127mm SHE-090-400500BE SHE-090-400500BK 145x145mm 145 PSI 102mm

Specifications

SKU SHE-090-300350BE
Brand RACEWORKS
Shipping Weight 5.0000kg
Shipping Width 0.360m
Shipping Height 0.200m
Shipping Length 0.300m
