SKU: RWH-240-04-5M

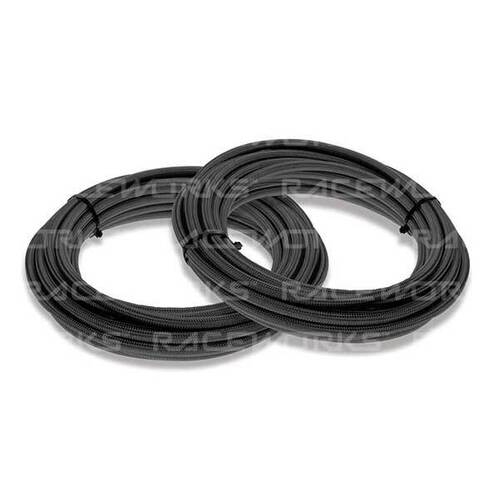

Raceworks 240 Series Black Nylon Braided Teflon E85 Hose 5 Metre RWH-240-04-5M

FITTING

$139.00

or 4 payments of $34.75 with Info



In Stock


Calculate Shipping



Australia wide rate - $25.00 (ETA: 3 days)

Description

Item: Raceworks 240 Series Black Nylon Braided Teflon E85 HoseRWH-240-04-5M

Raceworks is a range of High Performance AirFuel, and Fluid Management Components.

Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.

Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.

Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

Raceworks 240 Series Black Nylon Braided Teflon hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE (Teflon) tube has a black lightweight outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 220 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.

Long lengths (greater than 10M) can be specially ordered. Please enquire with your Raceworks Dealer.

Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe

Operating and Burst Pressure:

                        Operating Pressure     Burst Pressure
RWH-240-04 3000psi 10000psi
RWH-240-06 2500psi 9000psi
RWH-240-08 2000psi 7000psi
RWH-240-10 1500psi 5000psi
RWH-240-12 1200psi 4000psi



Specifications:

                                Inside DIA. Inch Inside DIA. MM Outside DIA. Inch Outside DIA. MM Weight Grams per Metre Bend Radius Inch Bend Radius MM
RWH-240-04-1M 3/16” 4.7mm 5/16” 7.9mm 85g 1.06" 27mm
RWH-240-06-1M 5/16” 7.9mm 15/32” 11.8mm 113g 1.57" 40mm
RWH-240-08-1M 13/32” 10.5mm 17/32” 13.3mm 142g 1.89" 48mm
RWH-240-10-1M 17/32” 13.4mm 41/64" 16.2mm 255g 3.15" 80mm
RWH-240-12-1M 41/64" 16.2mm 49/64" 19.3mm 284g 4.72" 120mm

Specifications

SKU RWH-240-04-5M
Brand RACEWORKS
Shipping Weight 5.0000kg
Shipping Width 0.360m
Shipping Height 0.200m
Shipping Length 0.300m
