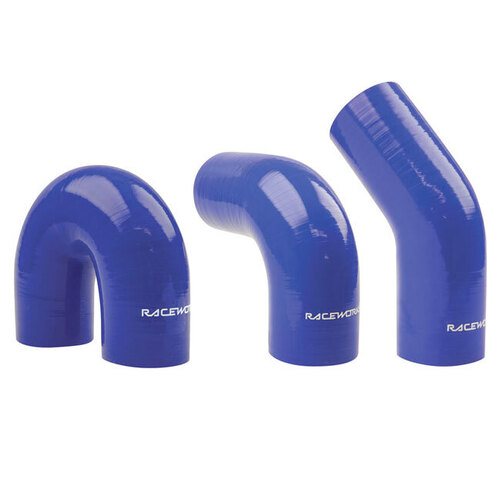

Raceworks 23 Degree Silicone Elbow 3'' (76mm) Blue 135 Degree SHE-135-300BE

Calculate Shipping

Australia wide rate - $25.00 (ETA: 3 days)

Item: Raceworks 23 Degree Silicone Elbow 3'' (76mm) BlueSHE-135-300BE

Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.

Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.

Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.

Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

Raceworks Silicone Hose is manufactured from the highest grade materials, to ensure that the strictest OEM and performance specifications are surpassed. All hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi (see application table for individual ratings) and a temperature range of -40 to ? degrees Celsius. Available in blue and black, all hoses are UV, ozone and electrochemically resistant to avoid fading and separation. All Raceworks products come with a 2 year warranty.

NOTE: Silicone hose is not fuel safe

Dia. Imp.	Dia. Metric	Part # Blue	Part # Black	Lth mm	Min. Burst Pres.	Bend Radius
0.50”	13mm	SHE-090-050BE	SHE-090-050BK	102×102mm	348 PSI	60mm
0.75”	19mm	SHE-090-075BE	SHE-090-075BK	102×102mm	348 PSI	60mm
1.00”	25mm	SHE-090-100BE	SHE-090-100BK	102×102mm	348 PSI	60mm
1.25”	32mm	SHE-090-125BE	SHE-090-125BK	102×102mm	305 PSI	60mm
1.50”	38mm	SHE-090-150BE	SHE-090-150BK	102×102mm	305 PSI	60mm
1.75”	44mm	SHE-090-175BE	SHE-090-175BK	102×102mm	305 PSI	60mm
2.00”	51mm	SHE-090-200BE	SHE-090-200BK	102×102mm	218 PSI	60mm
2.25”	57mm	SHE-090-225BE	SHE-090-225BK	102×102mm	174 PSI	60mm
2.50”	63mm	SHE-090-250BE	SHE-090-250BK	125×125mm	174 PSI	63mm
2.75”	70mm	SHE-090-275BE	SHE-090-275BK	125×125mm	174 PSI	70mm
3.00”	76mm	SHE-090-300BE	SHE-090-300BK	125×125mm	174 PSI	76mm
3.25”	83mm	SHE-090-325BE	SHE-090-325BK	125×125mm	145 PSI	83mm
3.50”	89mm	SHE-090-350BE	SHE-090-350BK	125×125mm	145 PSI	89mm
3.75”	95mm	SHE-090-375BE	SHE-090-375BK	125×125mm	145 PSI	95mm
4.00”	102mm	SHE-090-400BE	SHE-090-400BK	152×152mm	145 PSI	102mm
4.50”	114mm	SHE-090-450BE	SHE-090-450BK	152×152mm	145 PSI	114mm
5.00”	127mm	SHE-090-500BE	SHE-090-500BK	152×152mm	145 PSI	127mm

Dia. Imp.	Dia. Metric	Part # Blue	Part # Black	Lth mm	Min. Burst Pres.	Bend Radius
0.50”	13mm	SHE-045-050BE	SHE-045-050BK	102×102mm	348 PSI	13mm
0.75”	19mm	SHE-045-075BE	SHE-045-075BK	102×102mm	348 PSI	19mm
1.00”	25mm	SHE-045-100BE	SHE-045-100BK	102×102mm	348 PSI	25mm
1.25”	32mm	SHE-045-125BE	SHE-045-125BK	102×102mm	305 PSI	32mm
1.50”	38mm	SHE-045-150BE	SHE-045-150BK	102×102mm	305 PSI	38mm
1.75”	44mm	SHE-045-175BE	SHE-045-175BK	102×102mm	305 PSI	44mm
2.00”	51mm	SHE-045-200BE	SHE-045-200BK	102×102mm	218 PSI	51mm
2.25”	57mm	SHE-045-225BE	SHE-045-225BK	102×102mm	174 PSI	57mm
2.50”	63mm	SHE-045-250BE	SHE-045-250BK	125×125mm	174 PSI	63mm
2.75”	70mm	SHE-045-275BE	SHE-045-275BK	125×125mm	174 PSI	70mm
3.00”	76mm	SHE-045-300BE	SHE-045-300BK	125×125mm	174 PSI	76mm
3.25”	83mm	SHE-045-325BE	SHE-045-325BK	125×125mm	145 PSI	83mm
3.50”	89mm	SHE-045-350BE	SHE-045-350BK	125×125mm	145 PSI	89mm
3.75”	95mm	SHE-045-375BE	SHE-045-375BK	125×125mm	145 PSI	95mm
4.00”	102mm	SHE-045-400BE	SHE-045-400BK	152×152mm	145 PSI	102mm
4.50”	114mm	SHE-045-450BE	SHE-045-450BK	152×152mm	145 PSI	114mm
5.00”	127mm	SHE-045-500BE	SHE-045-500BK	152×152mm	145 PSI	127mm

Dia. Imp.	Dia. Metric	Part # Blue	Part # Black	Lth mm	Min. Burst Pres.	Bend Radius
1.50”	38mm	SHE-180-150BE	SHE-180-150BK	105×105mm	145 PSI	47.5mm
2.00”	51mm	SHE-180-200BE	SHE-180-200BK	105×105mm	218 PSI	47.5mm
2.25”	57mm	SHE-180-225BE	SHE-180-225BK	105×105mm	174 PSI	47.5mm
2.50”	63mm	SHE-180-250BE	SHE-180-250BK	105×105mm	174 PSI	47.5mm
2.75”	70mm	SHE-180-275BE	SHE-180-275BK	105×105mm	174 PSI	64.5mm
3.00”	76mm	SHE-180-300BE	SHE-180-300BK	105×105mm	174 PSI	64.5mm
3.25”	82mm	SHE-180-325BE	SHE-180-325BK	105×105mm	174 PSI	64.5mm
3.50”	89mm	SHE-180-350BE	SHE-180-350BK	105×105mm	145 PSI	64.5mm
4.00”	102mm	SHE-180-400BE	SHE-180-400BK	105×105mm	145 PSI	64.5mm

Dia. Imp.	Dia. Metric	Part # Blue	Part # Black	Lth mm	Min. Burst Pres.	Bend Radius
2.00”	51mm	SHE-023-200BE	SHE-023-200BK	102×102mm	218 PSI	51mm
2.25”	57mm	SHE-023-225BE	SHE-023-225BK	102×102mm	174 PSI	57mm
2.50”	63mm	SHE-023-250BE	SHE-023-250BK	125×125mm	174 PSI	63mm
2.75”	70mm	SHE-023-275BE	SHE-023-275BK	125×125mm	174 PSI	70mm
3.00”	76mm	SHE-023-300BE	SHE-023-300BK	125×125mm	174 PSI	76mm
3.25”	82mm	SHE-023-325BE	SHE-023-325BK	125×125mm	174 PSI	82mm
3.50”	89mm	SHE-023-350BE	SHE-023-350BK	125×125mm	145 PSI	89mm
3.75”	95mm	SHE-023-375BE	SHE-023-375BK	125×125mm	145 PSI	95mm
4.00”	102mm	SHE-023-400BE	SHE-023-400BK	152×152mm	145 PSI	102mm

Dia. Imp.	Dia. Metric	Part # Blue	Part # Black	Lth mm	Min. Burst Pres.	Bend Radius
2.00”	51mm	SHE-067-200BE	SHE-067-200BK	102×102mm	218 PSI	50.5mm
2.25”	57mm	SHE-067-225BE	SHE-067-225BK	102×102mm	174 PSI	53.5mm
2.50”	63mm	SHE-067-250BE	SHE-067-250BK	125×125mm	174 PSI	56.5mm
2.75”	70mm	SHE-067-275BE	SHE-067-275BK	125×125mm	174 PSI	60mm
3.00”	76mm	SHE-067-300BE	SHE-067-300BK	125×125mm	174 PSI	63mm
3.25”	82mm	SHE-067-325BE	SHE-067-325BK	125×125mm	174 PSI	66mm
3.50”	89mm	SHE-067-350BE	SHE-067-350BK	125×125mm	145 PSI	69.5mm
3.75”	95mm	SHE-067-375BE	SHE-067-375BK	125×125mm	145 PSI	72.5mm
4.00”	102mm	SHE-067-400BE	SHE-067-400BK	152×152mm	145 PSI	76mm

Dia. Imp.	Dia. Metric	Part # Blue	Part # Black	Lth mm	Min. Burst Pres.	Bend Radius
2.00”	51mm	SHE-135-200BE	SHE-135-200BK	187×187mm	218 PSI	45.5mm
2.25”	57mm	SHE-135-225BE	SHE-135-225BK	187×187mm	174 PSI	48.5mm
2.50”	63mm	SHE-135-250BE	SHE-135-250BK	187×187mm	174 PSI	51.5mm
2.75”	70mm	SHE-135-275BE	SHE-135-275BK	187×187mm	174 PSI	55mm
3.00”	76mm	SHE-135-300BE	SHE-135-300BK	187×187mm	174 PSI	58mm
3.25”	82mm	SHE-135-325BE	SHE-135-325BK	187×187mm	174 PSI	61mm
3.50”	89mm	SHE-135-350BE	SHE-135-350BK	187×187mm	145 PSI	64.5mm
3.75”	95mm	SHE-135-375BE	SHE-135-375BK	187×187mm	145 PSI	67.5mm
4.00”	102mm	SHE-135-400BE	SHE-135-400BK	187×187mm	145 PSI	71mm
