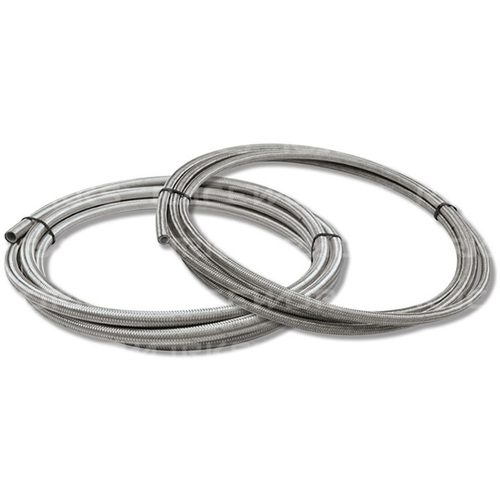

Raceworks 200 Series Braided Teflon E85 Hose 5 Metre RWH-200-08-5M
FITTING
Description
Item: Raceworks 200 Series Braided Teflon E85 HoseRWH-200-08-5M
Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.
Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.
Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.
Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.
Raceworks 200 Series Teflon Braided Hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE (Teflon) tube is covered by a stainless steel outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 200 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.
Long lengths (greater than 10M) can be specially ordered. Please enquire with your Raceworks Dealer.
Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe
Operating and Burst Pressure:
| Operating Pressure | Burst Pressure | |
|---|---|---|
| RWH-200-03 | 3000psi | 10000psi |
| RWH-200-04 | 3000psi | 10000psi |
| RWH-200-06 | 2500psi | 9000psi |
| RWH-200-08 | 2000psi | 7000psi |
| RWH-200-10 | 1500psi | 5000psi |
| RWH-200-12 | 1200psi | 4500psi |
Specifications:
| AN | Inside DIA. Inch | Inside DIA. MM | Outside DIA. Inch | Outside DIA. MM | Weight Grams per Metre | Bend Radius Inch | Bend Radius MM | |
|---|---|---|---|---|---|---|---|---|
| RWH-200-03-1M | -3 | 1/8” | 3.1mm | 1/4” | 6.4mm | 66g | 0.95" | 24mm |
| RWH-200-04-1M | -4 | 3/16” | 4.7mm | 5/16” | 7.9mm | 85g | 1.00" | 25mm |
| RWH-200-06-1M | -6 | 5/16” | 7.9mm | 15/32” | 11.8mm | 139g | 1.30" | 33mm |
| RWH-200-08-1M | -8 | 13/32” | 10.5mm | 17/32” | 13.3mm | 176g | 1.69" | 43mm |
| RWH-200-10-1M | -10 | 17/32” | 13.4mm | 41/64" | 16.2mm | 222g | 2.09" | 53mm |
| RWH-200-12-1M | -12 | 41/64" | 16.2mm | 49/64" | 19.3mm | 246g | 4.53" | 115mm |
Specifications
| SKU | RWH-200-08-5M |
| Brand | RACEWORKS |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
