Raceworks 140 Series Black Braided Cutter E85 Hose 1 Metre RWH-140-20-1M

Calculate Shipping

Australia wide rate - $25.00 (ETA: 3 days)

Item: Raceworks 140 Series Black Braided Cutter E85 HoseRWH-140-20-1M

Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.

Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.

Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.

Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

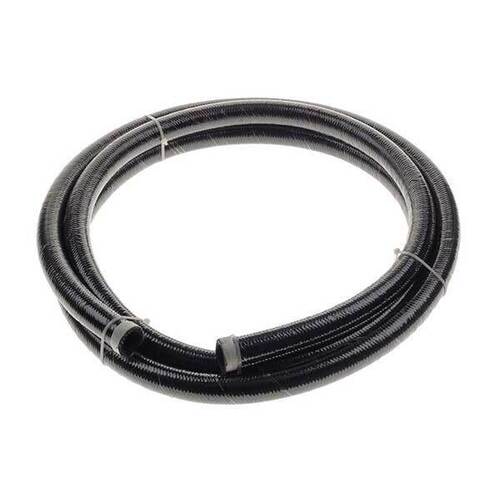

Raceworks 140 Series Cutter Black Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a black double outer braid. Suitable for use with regular fuel, E95, E10, Methanol, Oils, Synthetic Lubricants and Coolant. All Raceworks products come with a 2 year warranty.

Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe

Specifications:

Size	Operating Pressure	Burst Pressure	Inside dia Inch	Inside dia mm	Outside dia Inch	Outside dia mm	Weight (gm/m)	Bend Radius (Inch)	Bend Radius (mm)
AN-4	1000psi	6000psi	7/32"	5.5mm	7/16"	11.1mm	TBA	TBA	TBA
AN-6	1000psi	6000psi	11/32"	8.7mm	9/16"	13.8mm	TBA	TBA	TBA
AN-8	1000psi	5000psi	7/16"	11.1mm	5/8"	15.7mm	TBA	TBA	TBA
AN-10	1000psi	5000psi	9/16"	14.2mm	13/16"	20.8mm	TBA	TBA	TBA
AN-12	1000psi	3750psi	11/16"	17.4mm	15/16"	23.9mm	TBA	TBA	TBA
AN-16	750psi	2500psi	7/8"	22.2mm	13/64"	30.5mm	TBA	TBA	TBA
AN-20	500psi	2000psi	1-1/8"	28.5mm	1-13/32"	35.8mm	TBA	TBA	TBA
