SKU: RWH-120-06-1M

Raceworks 120 Series Black Nylon Braided Cutter E85 Hose 1 Metre RWH-120-06-1M

FITTING

$31.99

or 4 payments of $8.00 with Info



In Stock


Calculate Shipping



Australia wide rate - $25.00 (ETA: 3 days)

Description

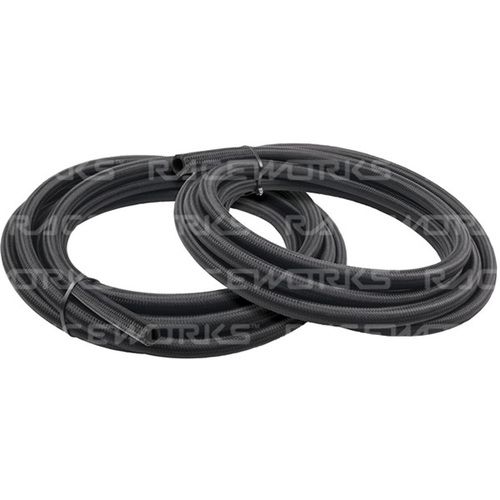

Item: Raceworks 120 Series Black Nylon Braided Cutter E85 HoseRWH-120-06-1M

Raceworks is a range of High Performance AirFuel, and Fluid Management Components.

Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.

Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.

Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

Raceworks 120 Series Black Nylon Braided Hose is lighter than traditional stainless steel braided hose. It is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a light weight black nylon outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant. All Raceworks products come with a 2 year warranty.

Long lengths (greater than 10M) can be specially ordered. Please enquire with your Raceworks Dealer.

Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe



Operating and Burst Pressure:

                         Operating Pressure    Burst Pressure
RWH-120-06 500psi 2000psi
RWH-120-08 500psi 2000psi
RWH-120-10 500psi 2000psi
RWH-120-12 350psi 1400psi
RWH-120-16 350psi 1400psi
RWH-120-20 350psi 1400psi



Specifications:

                                 AN    Inside DIA. Inch Inside DIA. MM Outside DIA. Inch Outside DIA. MM Weight Grams per Metre Bend Radius Inch Bend Radius MM
RWH-120-06-1M -6 11/32”   8.7mm 9/16" 13.8mm 157g 1.30" 33mm
RWH-120-08-1M -8 7/16” 11.1mm 5/8” 15.7mm 198g 1.69" 43mm
RWH-120-10-1M -10 9/16” 14.2mm 13/16" 20.8mm 275g 2.09" 53mm
RWH-120-12-1M -12 11/16” 17.4mm 15/16" 23.9mm 324g 2.36" 60mm
RWH-120-16-1M -16 7/8" 22.2mm 13/64" 30.5mm 414g 4.13" 105mm
RWH-120-20-1M -20 1-1/8" 28.5mm 1-13/32" 35.8mm 567g 4.33" 110mm

Specifications

SKU RWH-120-06-1M
Brand RACEWORKS
Shipping Weight 5.0000kg
Shipping Width 0.360m
Shipping Height 0.200m
Shipping Length 0.300m
