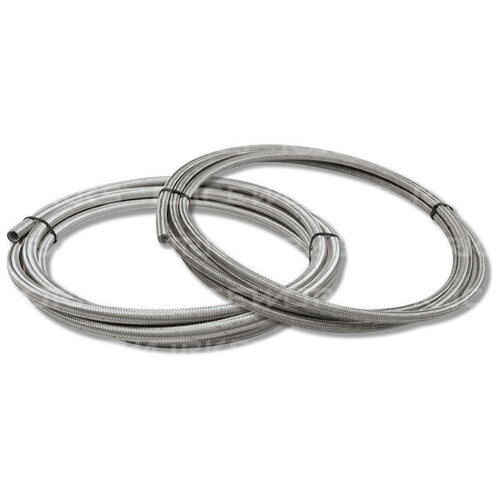

Item: Raceworks 100 Series Stainless Braided Cutter E85 Hose - 3 MetreRWH-100-08-5M
Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.
Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.
Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.
Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.
Raceworks 100 Series Stainless Steel Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a stainless steel double outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant. All Raceworks products come with a 2 year warranty.
Long lengths (greater than 10M) can be specially ordered. Please enquire with your Raceworks Dealer.
Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe
| Operating Pressure | Burst Pressure | |
|---|---|---|
| RWH-100-04 | 1000psi | 6000psi |
| RWH-100-06 | 1000psi | 6000psi |
| RWH-100-08 | 1000psi | 5000psi |
| RWH-100-10 | 1000psi | 5000psi |
| RWH-100-12 | 1000psi | 3750psi |
| RWH-100-16 | 750psi | 2500psi |
| RWH-100-20 | 500psi | 2000psi |
| AN | Inside DIA. Inch | Inside DIA. MM | Outside DIA. Inch | Outside DIA. MM | Weight Grams per Metre | Bend Radius Inch | Bend Radius MM | |
|---|---|---|---|---|---|---|---|---|
| RWH-100-04-1M | -4 | 7/32” | 5.5mm | 7/16" | 11.1mm | 151g | 1.00" | 25mm |
| RWH-100-06-1M | -6 | 11/32” | 8.7mm | 9/16" | 13.8mm | 196g | 1.30" | 33mm |
| RWH-100-08-1M | -8 | 7/16” | 11.1mm | 5/8” | 15.7mm | 253g | 1.69" | 43mm |
| RWH-100-10-1M | -10 | 9/16” | 14.2mm | 13/16" | 20.8mm | 365g | 2.09" | 53mm |
| RWH-100-12-1M | -12 | 11/16” | 17.4mm | 15/16" | 23.9mm | 471g | 2.36" | 60mm |
| RWH-100-16-1M | -16 | 7/8" | 22.2mm | 13/64" | 30.5mm | 567g | 4.13" | 105mm |
| RWH-100-20-1M | -20 | 1-1/8" | 28.5mm | 1-13/32" | 35.8mm | 850g | 6.30" | 160mm |
| SKU | RWH-100-08-5M |
| Brand | RACEWORKS |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
