SKU: QSTARZ-BT-Q818gT

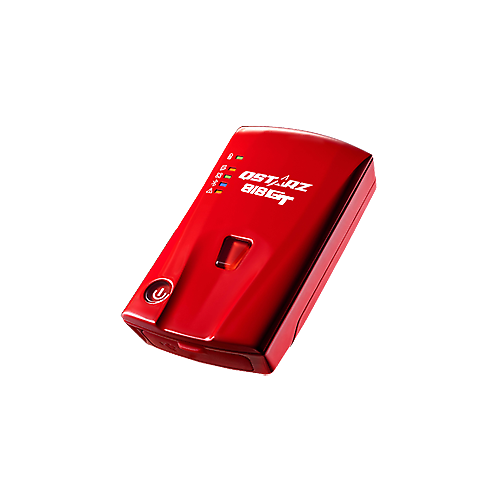

Qstarz BT-Q818GT Bluetooth GPS Receiver 10Hz

BT-Q818gT

$249.95

or 4 payments of $62.49 with Info



In Stock


Calculate Shipping



Australia wide rate - $15.00 (ETA: 3 days)

Description

  • Portable Bluetooth 4.0 GPS Receiver to measure driving performance
  • 10Hz Update rate excellent for high speed Racing activities
  • Bluetooth LE wireless connection to iPhone or Android devices
  • Analyze Circuit Lap timing or Drag performance test
  • GNSS engine and Acceleration sensor enabled
  • Supports race analysis, comparison and video with data overlay on the phone via QRacing APP

Model BL-818GT
Product description 10Hz Bluetooth GNSS Racing Receiver
Bluetooth Bluetooth LE 4.0
Frequency GPS/QZSS: L1 1575.42MHz, C/A code
GLONASS: L1 1598.0625~1603.375MHz, C/A code
Sensitivity Tracking -165dBm
Update Rate 10Hz
Acquisition Time Cold/Warm/Hot Start : 35/34/1 sec. (without AGPS)
Less than 15 sec. for cold start (with AGPS)
Position Accuracy Autonomous: 3m (2D-RMS)
SBAS: 2.5m(CEP)50 % (SBAS :WAAS, EGNOS, MSAS, GAGAN)
Datum WGS-84
Attitude / Velocity Max Attitude < 10,000m
Max Velocity < 515m/sec, Velocity accuracy: 0.05m/s (with aid)
Keys & LED ● 3 buttons: Power, G-sensor Calibration and Reset button
● 5 LED Indications (Charge, Memory, GPS, Bluetooth, and Alarm)
Battery Removable and rechargeable lithium-ion
Battery life Bluetooth connected: 20 hrs (10Hz)
Antenna Built in GPS Antenna
Sensor Yes (G-Sensor with ±3G dynamic range)
Beeper Yes
Input Power DC 5V, 500mA
Interface Micro USB port (for charging and firmware update)
Firmware Upgradable Yes (via Micro USB charging port)
Qstarz APP ● Qstarz QRacing (iOS & Android) for real-time race data analysis, Video+Data Overlay, and after race data view
● Qstarz BLE GPS View (iOS & Android) for watching GPS view
Environment temperature Operating Temp: - 10 ℃ to + 60 ℃
Storage Temp: - 20 ℃ to + 60 ℃
Charging Temp: 0 ℃ to + 45 ℃
Unit dimensions 81 x 48 x 19 mm
Weight 69 grams with battery (47 grams without battery)
Accessories Rechargeable battery, Micro USB Cable, and Warranty Card.

Specifications

SKU QSTARZ-BT-Q818gT
Brand QSTARZ
Shipping Width 0.240m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001800000m3
