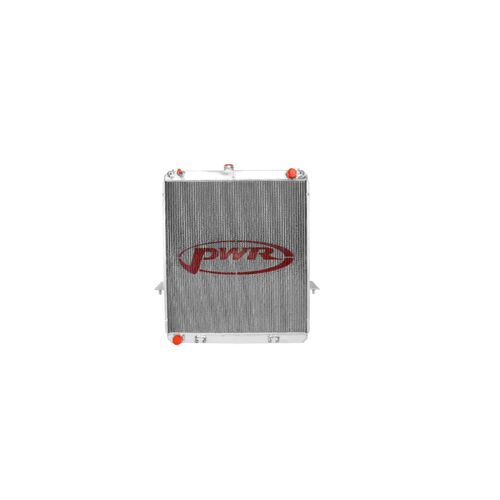

PWR 55mm Radiator for Nissan Patrol Y61 GU3 4.2TD/3.0TD 03-16)
PWR 55mm Radiator for Nissan Patrol Y61 GU3 4.2TD/3.0TD 03-16)
SKU: PWR5571

PWR 55mm Radiator for Nissan Patrol Y61 GU3 4.2TD/3.0TD 03-16)

radiator

$1,752.03

or 4 payments of $438.01 with Info



In Stock


Calculate Shipping


Australia wide rate - $65.00


ITEM: PWR 55mm Radiator for Nissan Patrol Y61 GU3 4.2TD/3.0TD 03-16)

Description

When it comes to keeping cool in the hot Australian climate, PWR’s range of 4WD High Performance Radiators will handle the extreme conditions. Whether it’s towing the caravan, camper trailer or driving through the soft sands in the top end, you can travel with ease. The PWR range are designed to fit in the original mounting position requiring no modification and allow the original plastic shroud and brackets to bolt directly to the unit.

  • Up to 30% more efficient than Standard OEM using the latest tube & fin technology
  • Heavy duty core combinations using 42, 55 & 68mm cores
  • Revolutionary fin pitch from 10-22FPI and louver angles
  • Thicker wall and high tensile Sheetmetal to handle the harshest of corrugations
  • Use of sub header plates & expansion joints to further strengthen the core
  • World class TIG welding by our passionate fabricators
  • State of the art controlled atmosphere brazing process
  • All items CAD designed to meet ISO9001 International standards for repeatability
  • Proven performance backed by comprehensive wind tunnel testing
  • Pressure tested and guaranteed
  • 1 Year manufactured warranty
  • 100% Australian made
  • PWR can custom make to your requirements. Please let us know if you would like thermo fan mounts, fan shroud, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration.

Specifications

  • Aluminium
  • Polished Sheet Metal Tanks
  • 719 x 610 x 70mm
  • Rolled Dimple Tube and Fin
  • Factory Size Outlets
  • Radiator Cap Sold Separately

What's Included

  • 1 x Rolled Dimple Tube and Fin Radiator

compatibility

  • NISSAN Patrol Y61 GU3 4.2TD and 3.0TD Diesel Engine (2003 - 2016) Due to a thicker design radiator, trimming of the plastic shroud required around bottom corners to allow radiator to seat properly in lower pins. Trimming of shroud also required around top hose area.

SKU PWR5571
Brand PWR
Shipping Weight 50.0000kg
Shipping Width 0.950m
Shipping Height 0.300m
Shipping Length 0.400m
