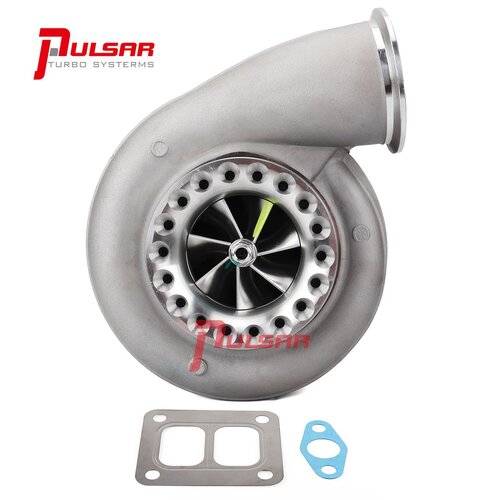

ITEM: PULSAR Billet S480 Turbo with 96mm Turbine wheel

• 7+7 blades 80*113mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics
• S400 96*88mm Inconel 713 turbine wheel for high-temperature operation
• T6 Divided turbine housings in 1.32A/R? or 1.58 A/R with 5? V Band Outlet 5.75 OD Marmon flange
• T4 Divided turbine housing in 1.25 A/R 0r 1.10 A/R
• Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower

Description

• Compressor Wheel: 80*113mm
• Turbine Wheel: 96*88mm or 83*74mm
• Compressor Inlet: 5? Hose
• Compressor Outlet: V-Band
• Turbine Inlet: T6 or T4
• Turbine Outlet: 5.75? Marmon(T6) or 4? V-Band(T4)
• Oil Feed: 1/4 NPT
• Oil Drain: Std T6 Drain Flange
