- Compressor Wheel: 73*91mm
- Turbine Wheel: 82*75mm
- Compressor Inlet: 4? Hose
- Compressor Outlet: 3? hose
- Turbine Outlet: 3.5? V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
SKU: pulsar-tur-7375

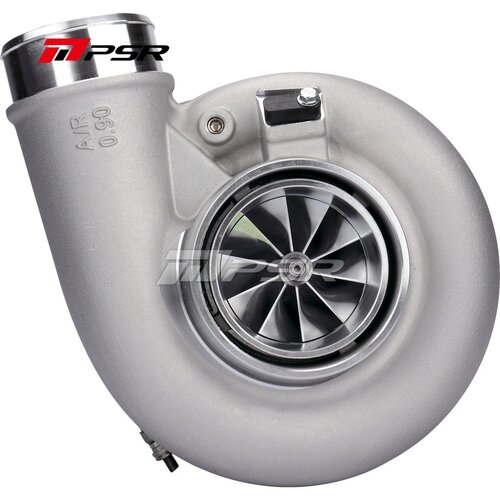

PULSAR 7375G aka COMPACT G42-1200 Dual Ball Bearing Turbo
PULSAR TURBO
Description
ITEM: PULSAR 7375G aka COMPACT G42-1200 Dual Ball Bearing Turbo
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
T4 1.15 A/R, dual v-band 1.15 and 1.28 housings are with an open style inlet(default flange in the box is 3.5?), T4 1.28 A/R housing is with a twin-scroll inlet(4? outlet flange in the box)
Specifications
SKU | pulsar-tur-7375 |
Brand | PULSAR TURBO |
Shipping Weight | 45.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.300m |
Shipping Length | 0.350m |
