- Compressor Wheel: 68*84mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4?? Hose
- Compressor Outlet: 2.5?? V-Band
- Turbine Inlet: T3/T4
- Turbine Outlet: 3?? V-Band
- Water Ports: 2-M14 x 1.5
- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3
SKU: pulsar-tur-6862g

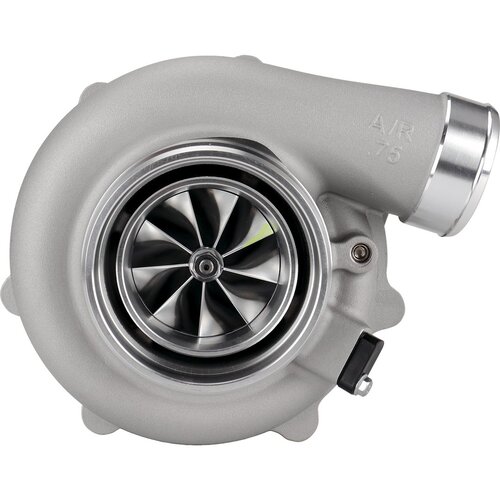

PULSAR 6862G aka G35-1050 Dual Ball Bearing Turbo
PULSAR TURBO
Description
ITEM: PULSAR 6862G aka G35-1050 Dual Ball Bearing Turbo
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
Specifications
SKU | pulsar-tur-6862g |
Brand | PULSAR TURBO |
Shipping Weight | 45.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.300m |
Shipping Length | 0.350m |
