PSR/Raceworks/Zeitronix Flex Fuel Kit w/Teflon Hose for Subaru WRX 01-14/STI 01-21 (OEM Fuel Setup)

Available Options
Gauge Colour:
Hose Type:

Calculate Shipping

Australia wide rate - $45.00

Description

item:PSR/Raceworks/Zeitronix Flex Fuel Kit w/Teflon Hose for Subaru WRX 01-14/STI 01-21 (OEM Fuel Setup)

Pro Speed Racing now offer flex fuel packages including the Zeitronix ECA2 kit with quality Raceworks 6AN teflon hose and fittings. Also included is the PSR Plug and Play ECA Harness which deletes the rear O2 sensor and uses its ECU input for easy setup. (Tuning required).

The Zeitronix ECA2 (Ethanol Content Analyser) kit includes a Flow Through Flex Fuel Sensor, the Ethanol Content Analyser module and an ECA Harness. E85 has the equivalent octane rating of 105 or higher octane fuel. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself. The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle. For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel by measuring the actual ethanol content so the ECU can run the vehicle safely no matter the ethanol content*. (*Tuning required)

ECA2 Features:

Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with ECUs, data logging and engine management systems.
Connecting harness to Zeitronix Flow Through FLEX Fuel Sensor is included. Harness length is 8 ft (2.4m)
Optional real time E% Ethanol Content Gauge.
The E% gauge is only 3/4" (19mm) thick. The back of the gauge is completely flat with cable hidden in a cavity and can be surface mounted almost anywhere inside the car cabin using a piece of Velcro or double sided tape. The E% Gauge base allows the gauge to be mounted in a standard 2” 1/16 (52mm) gauge pod. For additional mounting options the package includes 2 set screws and 2 nuts (4-40 screw size). Check out the gallery for gauge installation pictures.
The E% Gauge plugs into the ECA-2 GAUGE port. Power and serial data is supplied directly through the single connection - there are no additional +12V or ground wires. The E% Gauge cable length is 5 ft (1.5m).
ECA-2 dimensions: 3" x 2" x 1" (76mm x 50mm x 25mm)
Made in the USA!

This kit incorporates the Raceworks 200-Series E85 safe braided hose in either stainless steel braid or black braid. Raceworks 200 Series Teflon Braided Hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE (Teflon) tube is covered by a stainless steel outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 200 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses.

Raceworks 200/220 Series Hose Ends are all manufactured from 6061 T6 grade billet aluminium. All Raceworks hose ends are hardcoat anodised for maximum protection, and full flow to provide uninhibited fluid movement. Female swivel hose end ensures ease of fitment once 200 Series Hose has been connected. All Raceworks products come with a 2 year warranty.

Important Notes:

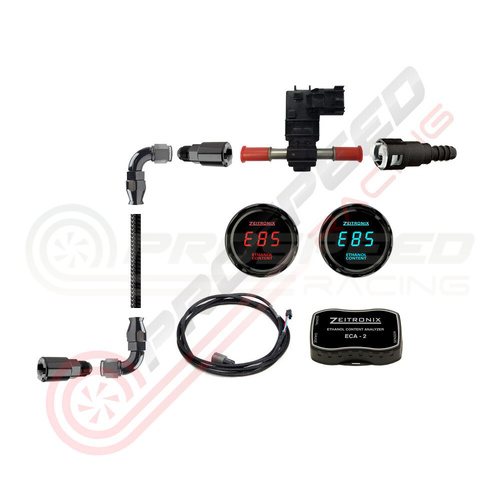

Picture shows rough plumbing layout only. Actual layout will depend on engine bay components and personal taste.
Kit includes unassembled hose and fittings which will require cutting and assembling. Additional tools/supplies may be required. This allows user to decide optimal hose lengths and routing.
Suits factory fuel rail plumbing with OEM Fuel Pressure Regulator.
OEM FPR has a simple clamp-on fuel hose between it and the fuel return line which will be reused. Cut off the OEM quick connect fitting from this fuel line and connect the exposed hose to the supplied barbed quick connect fitting for the ECA sensor, or purchase new 5/16" rubber fuel hose to run between.
Tuning is required to correct rear O2 sensor CEL.
Ethanol Sensor will require a custom mounting solution and a suitable location.
This kit is designed to adapt to SAE Quick Connect EFI fittings only. Please check engine bay feed/return lines and compare with the second photo on listing to determine compatibility.

Hose Specifications:
