PSR/Raceworks Parallel Fuel Rail Kit Turbosmart FPR800 Blue PSR-RWH-434

Item: PSR/Raceworks Parallel Fuel Rail Kit Suit 1/8" NPT FPR w/Radium Conversion Fuel Rails and Teflon HosePSR-RWH-434

Raceworks is a range of High Performance Air, Fuel, and Fluid Management Components.

Raceworks products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed.

Raceworks components include fuel pumps, silicone hoses, fuel rails, aluminium fittings, performance hose, fuel injectors, sensors, connectors and supporting hardware.

Raceworks is available through a network of specialised resellers and leading automotive retail groups who have a passion for performance.

Pro Speed Racing now offer fuel rail packages including Radium Engineering top-feed conversion fuel rails and quality Raceworks hoses and fittings. This kit can suit any Twin Inlet 1/8" NPT Fuel Pressure Regulator including the Turbosmart FPR800 and GFB FX-S.

The "conversion" fuel rails convert the OEM side feed fuel injector setup to top feed allowing the use of high flow fuel injectors (not included). The fuel rail injector bores are 14mm ID. Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser engraved for a high quality surface finish. The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85. Machined press-fit phenolic spacers are included to insulate intake manifold heat transfer. Two sets of spacers are included to accomodate popular 34mm or 48mm height universal fuel injectors from popular manufacturers. DO NOT purchase "WRX Fitment" injectors.

Radium fuel rails include a port for an aftermarket fuel pulse dampener (sold separately). The opening and closing of fuel injectors creates pressure pulses in the fuel rail which can lead to unstable fuel pressure. In order to achieve a safe and consistent rail pressure, a fuel pulse damper (FPD) is often necessary. The FPD's internal diaphragm will absorb oscillating pulses and stabilize fuel pressure. This correction can be measured throughout the RPM range and can often help idle surge, especially with high flow injectors. Furthermore, a fuel pulse damper can help solve erratic lean air/fuel ratio spikes, commonly experienced as "stumbling", that are difficult to tune out.

For more in-depth information on the function of fuel pulse dampers, read the Radium blog HERE.

This kit incorporates the Raceworks 200-Series E85 safe braided hose in either stainless steel braid or black braid. Raceworks 200 Series Teflon Braided Hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE (Teflon) tube is covered by a stainless steel outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 200 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses.

Raceworks 200/220 Series Hose Ends are all manufactured from 6061 T6 grade billet aluminium. All Raceworks hose ends are hardcoat anodised for maximum protection, and full flow to provide uninhibited fluid movement. Female swivel hose end ensures ease of fitment once 200 Series Hose has been connected. All Raceworks products come with a 2 year warranty.

Important Notes:

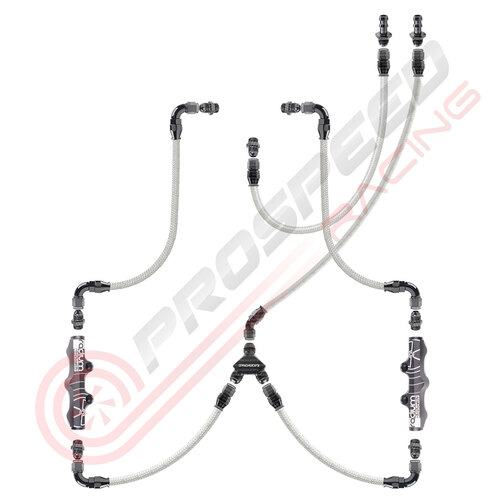

• Picture shows rough plumbing layout only. Actual layout will depend on engine bay components and personal taste.
• Picture shows assembled hoses/fittings, kit includes unassembled hose and fittings which will require cutting and assembling. Additional tools/supplies may be required. This allows user to decide optimal hose lengths and routing.
• This kit terminates with a 5/16" Barb on both the feed and return lines. OEM fuel hose (not included) will then be requred to connect from the new barbs to the existing engine bay feed and return hard lines.
• Top-Feed Injectors required (3/4 Length, 14mm top and bottom O-Ring)

Hose Specifications:

• Operating Pressure: 3000psi
• Burst Pressure: 10000psi
• Inside DIA. Inch: 5/16”
• Inside DIA. MM: 7.9mm
• Outside DIA. Inch: 15/32”
• Outside DIA. MM: 11.8mm
• Weight Grams per Metre: 139g
• Bend Radius Inch: 1.30"
• Bend Radius MM: 33mm

Kit Includes:

• Radium Top Feed Fuel Rails
• Fuel Pressure Regulator (if selected)
• 3 Metres Raceworks 200 Series Teflon Hose
• Raceworks 200 Series Hose Ends
• Raceworks Y-Block Fitting
• Raceworks Male AN ORB to Male AN Flare Fittings
• Raceworks SAE Quick Connect EFI to AN Flare Fittings

Vehicle Fitment:

Suits below vehicles with aftermarket Fuel Pressure Regulator (Twin 1/8" NPT Inlet, Single 1/8" NPT Outlet):

• 1994-2000 Subaru WRX EJ20
• 1994-2000 Subaru STI EJ20
