PSR Equal Length Exhaust Manifold/Headers with HEAT COATING

item:PSR Equal Length Exhaust Manifold/Headers with HEAT COATING

Note: EJ20 Motors will require EJ25 Oil Pan and Pickup for installation. 06-07 WRX/STI and 03-08 Forester XT will need to modify OEM oil cooler assembly.

PSR all stainless steel exhaust manifolds are a tried and true solution for improving more power and torque through the entire RPM range of your Subaru. These single scroll Equal length exhaust manifolds suit all EJ20/EJ25 single-scroll turbo Subarus including Classic GC8/GF8, GDA/GDB, GH/GE/GR/GV and the final gen VAB STI. Lost wax finished flanges with a 4-2-1 collector design and a smooth inner surface allows for better flow and reliability. Stable connection and air leakage of the exhaust manifold is avoided by the 3 bolts flange design up-pipe. A larger pipe diameter of all sections enables better flow of exhaust allowing for higher power and torque and better turbo spool.

Features:

• Isometric 4-2-1 Type Collector
• Equal Length Design
• Increased 60mm Bore Size of Up Pipe
• All new higher pitched Boxer Sound
• Lost Wax flanges for high strength
• Lightweight and Rust Resistant SUS304 contruction
• Gaskets and Hardware included

Specifications:

• Type: Unequal Length, Single Scroll
• Material: Stainless Steel SUS304
• Manifold Spec: I/D – 42.7mm, Thickness – 2.0mm, Weight - 8.85kg

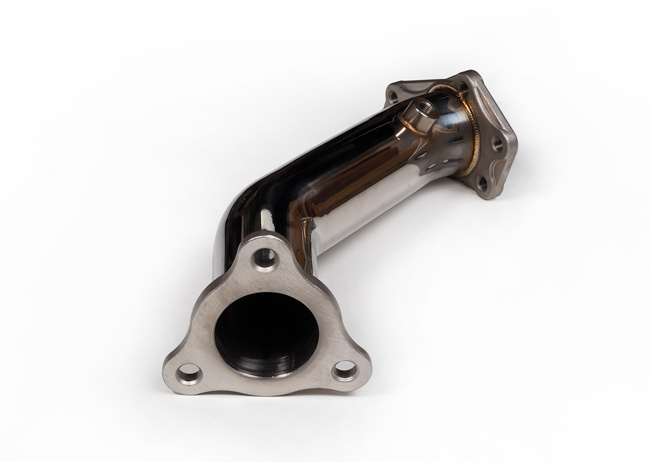

• Up Pipe Spec : I/D – 60.5mm, Thickness – 2.0mm, Weight - 1.9kg
• Flange Thickness: 12mm

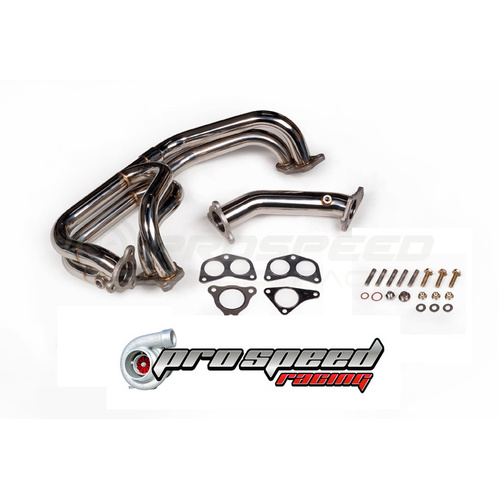

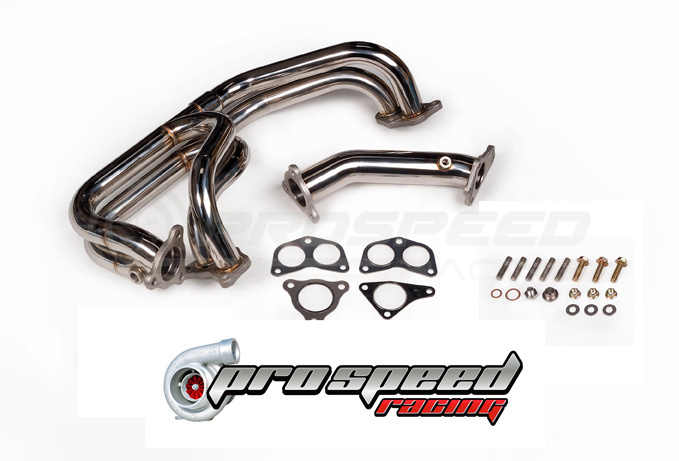

Kit Includes:

• Exhaust manifold
• Up pipe
• Turbo gaskets
• Hardware kits

Vehicle Fitment:

Note: EJ20 Motors will require EJ25 Oil Pan and Pickup for installation. 06-07 WRX/STI and 03-08 Forester XT will need to modify OEM oil cooler assembly.

• 1994-2000 Subaru WRX
• 2001-2007 Subaru WRX
• 2008-2014 Subaru WRX
• 1994-2000 Subaru STI
• 2001-2007 Subaru STI
• 2008-2014 Subaru STI
• 2015-2021 Subaru STI
• 1997-2002 Subaru Forester GT
• 2003-2008 Subaru Forester XT
• 2008-2013 Subaru Forester XT
• 1989-1993 Subaru Liberty RS
• 1994-1998 Subaru Liberty RS
• 1998-2003 Subaru Liberty B4 (single-turbo)
• 2007-2009 Subaru Liberty GT (single-scroll)
