Prosport HUD Heads Up Display OBDII Gauge Kit

item: Prosport HUD Heads Up Display OBDII Gauge Kit

Prosport Performance Gauges consist of two important elements: the latest trend in Asia and hottest design in USA. Great importance is attached to the experience of users and the quality of the product, from the design of the dial and the shell to the internal movement, etc., which are details that cannot be ignored.

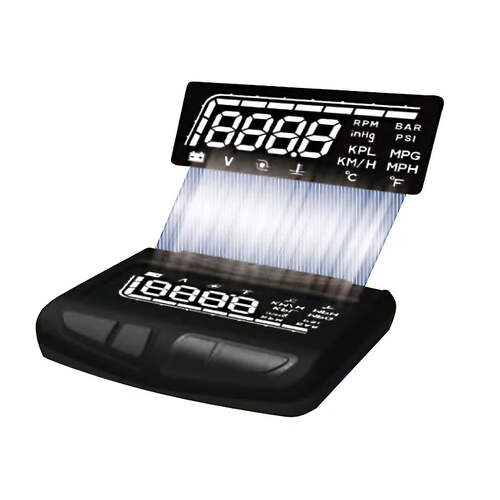

The Prosport HUD Heads Up Display kit projects vehicle engine data directly onto the windshield infront of the driver. This plug and play product connects directly to the vehicle's OBDII port and instantly displays engine data such as speed, RPM and boost. Warning limits can even be set to alert the driver should certain values exceed the user set limits.

Available Data

Depending on the vehicle the following information can be viewed:

• Boost & Vacuum (PSI or BAR)
• Speed (MPH or KPH)
• Fuel Economy
• Tachometer
• Voltage
• Water Temperature (°F or °C)

Certain vehicles may not provide all information such as Boost and Fuel Economy.

Features:

• Real time fuel economy display (KPL or MPG)
• Programmable speed limit alert
• Programmable coolant temp alert

Compatibility

The Prosport HUD kit is compatible with most OBDII vehicles from 1996 onwards, however certain vehicle manufacturers do not offer a universal data stream compatible with aftermarket OBDII readers. For certain japanese vehicles (Mitsubishi and Subaru) only 2008+ models with CAN bus ECUs will offer a compatible OBDII signal. For vehicles that are compatible, some values may not display on the HUD kit.

Unfortunately there is no exact way to determine compatibility for your vehicle, however a list of known compatible vehicles will be listed below when discovered.

Compatible Models

The following are vehicles that we have tested to work with the Prosport HUD Kit:

• 2008-2014 Subaru WRX/STI
• 2022+ Subaru BRZ ZD8
• MN Mitsubishi Triton (does not display Boost/Vacuum)
• Volkswagen Golf 1.4 TSI Mk7.5
• Volkswagen Golf R Mk7
• Honda Accord CM
• Jeep Wrangler JK

Installation

Installation is simple. Plug the supplied OBDII cable into the vehicles OBDII diagnostics port (usually located under the driver's side steering column) and plug the other end of the cable into the HUD box. Use the supplied double sided tape onto the HUD box and stick firmly onto a clean, decontanimated area of the dashboard beneath the windscreen. Apply the supplied tinting film onto a clean and decontaminated area of the windscreen above the mounting location of the HUD box.

Kit Includes

• HUD Display Box
• Windscreen Tinting Film
• OBDII to USB communication cable
• Double Sided Tape
