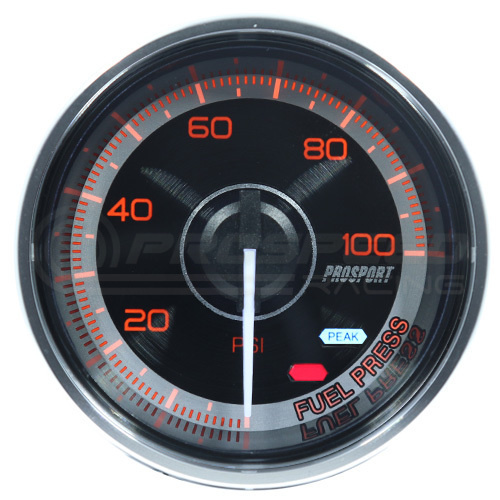

Prosport 52mm Crystal Series Fuel Pressure Gauge - Amber/White

item: Prosport 52mm Crystal Series Fuel Pressure Gauge - Amber/White

Prosport Performance Gauges consist of two important elements: the latest trend in Asia and hottest design in USA. Great importance is attached to the experience of users and the quality of the product, from the design of the dial and the shell to the internal movement, etc., which are details that cannot be ignored.

The Crystal Series gauge range is one of Prosport's newest designs and features a desirable brushed aluminium face with a polished bezel. On top of this amazing design the gauge range features programmable warning alert and peak recall functions. All gauges feature a dual colour backlight and can be changed between White and Amber at any time using the button on the back of the gauge body. The display is also dimmable using the same button to adjust. All gauges in the Cystal Series range feature a digital stepper motor to drive the gauge movement and for models with an external electric sensor is required a new waterproof sensor is included for long lasting functionality.



Digital Stepper Motor Movement

Stepper motor movement represents the pinnacle of single gauge technology and provides the highest level of accuracy, precision, responsiveness and durability. Each instrument is controlled by a microprocessor printed internally on the circuit board, which allows incredibly fast calculations and many other particular functions not seen in other instrument types. These gauges send units for the ultimate in accuracy by utilizing laboratory grade, no more than +/- 1%. To further increase accuracy, every time the gauge is powered up it will zero calibrate to assure that it will always remain as accurate as it was the day it was made.

Prosport use two different digital stepper motors; Swiss-made stepper movements offer a more affordable yet precise option while the Japanese-made stepper movements are faster and noiseless. Cyystal series gauge utilise the Japan stepper motor.

All pressure and temperature gauges include an electric sensor so you do not need to run air or fluid hoses into the cabin directly to the gauge. Other gauges (AFR and Volt) are wired directly to existing vehicle wiring.



Opening Ceremony

Each Crystal Series gauge performs an opening ceremony when powered on. During this ceremony the needle will sweep to each limit and self calibrate. See below for a video of this in action (note, external warning light shown, sold separately):



Warning and Peak Functions

The Crystal Series offer two additional functions: Peak Recall and Warning. The Peak function saves the highest value the gauge reached while driving and after pressing the Recall button allows this value to be displayed on the gauge. This Peak value can then be cleared after viewing and will automatically record a new Peak value.

The Warning function is fully programmable using the front button and the warning value can be set anyway within the gauge display range. If the gauge exceeds the set Warning value the gauge can beep, change colour or do both to alert the driver. This is ideal as you do not need to take your eyes off the road to check the gauge to ensure it's in a safe range.



Dual Colour

Prosport Crystal Series gauges are able to be changed between two colours using the toggle button on the back of the display. This button can also adjust the brightness to 6 levels. An additional wire on the power harness, when connected to a headlight switching wire, will also dim the display whenever the headlights are switched on.



Daisy Chain Installation

Prosport Crystal Series Gauges have an additional feature which allows them to daisy chain power from one gauge to the next. This greatly simplifies installation, as only one gauge needs to be wired for power and ground while the others can simply link to this gauge and chain from one another using the included daisy chain wire.

Signal/sensor wires will still be required for each gauge separately.

Note: Wideband AFR gauge cannot be daisy chained and requires individual power source.



Shallow Depth

The Crystal series features a compact body with a shorter length. The include guage pod is designed exclusively to fit this new, more compact design and helps keep the vehicle interior less cluttered.



Included Accessories

Each Crystal Series Gauge includes the following:

• 1 x Gauge
• 1 x Mounting Cup
• 1 x Power Wire
• 1 x Daisy Chain Wire
• 1 x Mounting Bracket (with hardware)
• 1 x Sensor Unit + Wiring (where applicable)

_{*Additional accessories may be included for each particular gauge model. See details below}



Optional Accessories

Additional accessories may be required to finalise your gauge installation. See below for some examples which are sold separately:

• (Universal pod included)



Gauge Lineup

216CLSAWABO-R - Boost Gauge (Electrical)

• -30inHg to +45psi display range.
• Electrical gauge, includes external MAP sensor which can be mounted in engine bay.
• Waterproof Sensor and Wiring.
• 4mm hose barb fitting on sensor.
• Includes hose, tee piece and inline filter for installation.
• Requires existing manifold pressure/vacuum source. Newer vehicles may require a "boost tap" (sold separately) to create a pressure/vacuum source.

216CLSAWAOP-R - Oil Pressure Gauge (Electrical)

• 0-140psi display range.
• Electrical gauge, Includes external pressure sensor.
• Waterproof Sensor and Wiring.
• Sensor thread: 1/8" NPT
• May require adaptor for oil pressure sensor (sold separately).
• For accuracy it is recommended not to mount sensor directly to engine. Use remote sensor kit (sold separately).

216CLSAWAFP-R - Fuel Pressure Gauge (Electrical)

• 0-100psi display range.
• Electrical gauge, Includes external pressure sensor.
• Waterproof Sensor and Wiring.
• Sensor thread: 1/8" NPT
• May require adaptor for fuel pressure sensor (sold separately).
• For accuracy it is recommended not to mount sensor directly to engine. Use remote sensor kit (sold separately).

216CLSAWAWT-R - Water Temperature Gauge (Electrical)

• 20-120?C display range.
• Electrical gauge, Includes external temperature sensor.
• Waterproof Sensor and Wiring.
• Sensor thread: 1/8" NPT
• May require adpator for water temperature sensor (sold separately).

216CLSAWAOT-R - Oil Temperature Gauge (Electrical)

• 50-150?C display range.
• Electrical gauge, Includes external temperature sensor.
• Waterproof Sensor and Wiring.
• Sensor thread: 1/8" NPT
• May require adpator for oil temperature sensor (sold separately).

216CLSAWAEGT-R - Exhaust Gas Temperature EGT Gauge (Electrical)

• 200-1100?C display range (as 13 x 100?C units).
• Electrical gauge, Includes external K type temperature probe.
• Waterproof Sensor and Wiring.
• Sensor thread: 1/8" NPT
• May require weld on bung for temperature sensor (sold separately).

216CLSAWAAFR4.9-WO - Wideband Air/Fuel Ratio Gauge

• 10:1 - 20:1 display range
• Includes Bosch 4.9 LSU O2 Sensor
• Requires O2 bung on Exhaust. Weld on bung included.
• Includes Wideband control box and allows for 0-5V analogue output for ECU tuning/logging (where supported).

216CLSAWAVO-R - Electrical Volt Gauge

• 8-18V display range.
• Electrical gauge, no sensors required.
• Easiest gauge to install.



Wiring

Each gauge includes a universal, non-terminated wiring harness which requires professional installation, however products such as fuse taps (sold separately) can be utilised to simplify installation. In-line fuses (sold separately) are recommended to protect gauges from power spikes.

Some Prosport Gauges allow for auto dimming when wired to a headlight switching wire (see table below for dimmable models).



Gauge Series Comparison

Prosport offer a variety of gauges with a unique set of fucntions. See chart below for comparison:

Gauge Series	Stepper Motor	Warning Function	Peak/Recall Function	Dimmable	Includes Gauge Pod
BF	Swiss Stepper (Excl. Mechanical Gauge)	No	No	No	No
SM PK	Swiss Stepper	Yes	Yes	No	Yes
Evo	N/A (Digital Display)	No	No	Yes (manually)	No
Evo PK	N/A (Digital Display)	Yes	Yes	Yes	Yes
Halo	Swiss Stepper	Yes	No	Yes	Yes
Halo PK	Swiss Stepper	Yes	Yes	Yes	Yes
JDM	Japan Stepper	Yes	No	Yes	Yes
Crystal	Japan Stepper	Yes	Yes	Yes	Yes
