Proflow Cylinder Heads LS AirMax-B 210 Aluminium Bare Cylinder Heads 64cc Chamber 210cc Intake Runner 15deg Chevrolet For Holden Pair
PROFLOW
Description

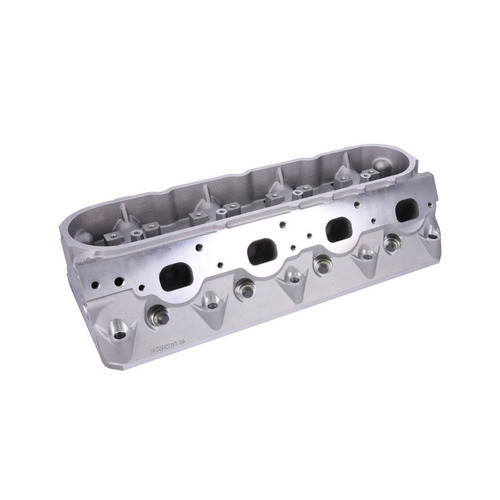

item: Proflow Cylinder Heads LS AirMax-B 210 Aluminium Bare Cylinder Heads 64cc Chamber 210cc Intake Runner 15deg Chevrolet For Holden Pair
Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302, 351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB. They have phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, high performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.
Proflow's 210 AirMax-B LS1 Cylinder Heads feature our Permanent Mold As-Cast Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your OEM engine operating below 6300 RPM.
SPECIFICATIONS | |
Combustion Chamber | 64 cc |
Intake Port Volume | 210 cc |
Intake Port Dimensions | 3.19 (H) x 1.015 (W) |
Exhaust Port Volume | 82 cc |
Exhaust Port Dimensions | 1.40 (H) x 1.66 (W) |
Spark Plug Location | OEM |
Intake Valve Diameter | 2.02 |
Exhaust Valve Diameter | 1.60 |
Valve Stem Diameter | 8 mm |
Valve Spring Pocket ID | 1.50 |
Valve Guide OD | 0.570 |
Rocker Stud Thread Size | OE LS1 Style |
Valve Angle | 15° |
Deck Thickness | 0.425 |
Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302, 351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB. They have phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, high performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.
Proflow's 210 AirMax-B LS1 Cylinder Heads feature our Permanent Mold As-Cast Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your OEM engine operating below 6300 RPM.
SPECIFICATIONS | |
Combustion Chamber | 64 cc |
Intake Port Volume | 210 cc |
Intake Port Dimensions | 3.19 (H) x 1.015 (W) |
Exhaust Port Volume | 82 cc |
Exhaust Port Dimensions | 1.40 (H) x 1.66 (W) |
Spark Plug Location | OEM |
Intake Valve Diameter | 2.02 |
Exhaust Valve Diameter | 1.60 |
Valve Stem Diameter | 8 mm |
Valve Spring Pocket ID | 1.50 |
Valve Guide OD | 0.570 |
Rocker Stud Thread Size | OE LS1 Style |
Valve Angle | 15° |
Deck Thickness | 0.425 |
Specifications
SKU | pf-PFEAHCLS1-210-BARE |
Brand | PROFLOW |
Shipping Weight | 40.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.300m |
Shipping Length | 0.600m |
