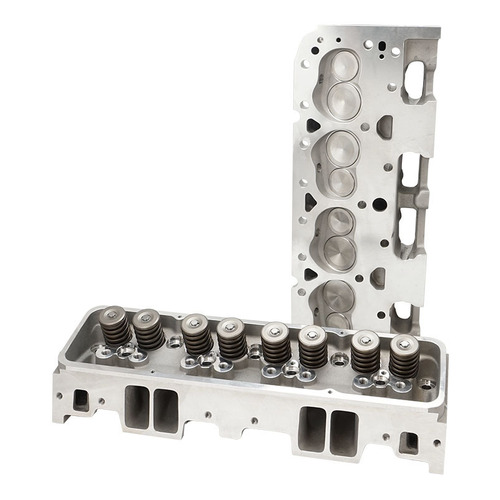

Proflow Cylinder Heads AirMax 180 Aluminium Assembled 64cc Chamber Straight Plug 180cc Intake Runner SB For Chevrolet Pair
PROFLOW
Description
item: Proflow Cylinder Heads AirMax 180 Aluminium Assembled 64cc Chamber Straight Plug 180cc Intake Runner SB For Chevrolet Pair
Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302, 351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB. They have phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, high performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.
SPECIFICATIONS | |
Combustion Chamber | 64 cc |
Intake Port Volume | 180 cc |
Intake Port Dimensions | 2.00 (H) x 1.20 (W) |
Exhaust Port Volume | 70 cc |
Exhaust Port Dimensions | 1.450 (H) x 1.550 (W) |
Spark Plug Location | Straight |
Intake Valve Diameter | 2.020 |
Exhaust Valve Diameter | 1.60 |
Valve Stem Diameter | 11/32 |
Valve Spring Pocket ID | 1.49 |
Valve Guide OD | 0.530 (0.570 at base) |
Maximum Valve Lift | 0.530 |
Rocker Stud Thread Size | 7/16-24 |
Valve Angle | 23° |
Deck Thickness | 0.750 |
Installed Spring Height | 1.790 @ 130lbs |
Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302, 351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB. They have phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, high performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.
SPECIFICATIONS | |
Combustion Chamber | 64 cc |
Intake Port Volume | 180 cc |
Intake Port Dimensions | 2.00 (H) x 1.20 (W) |
Exhaust Port Volume | 70 cc |
Exhaust Port Dimensions | 1.450 (H) x 1.550 (W) |
Spark Plug Location | Straight |
Intake Valve Diameter | 2.020 |
Exhaust Valve Diameter | 1.60 |
Valve Stem Diameter | 11/32 |
Valve Spring Pocket ID | 1.49 |
Valve Guide OD | 0.530 (0.570 at base) |
Maximum Valve Lift | 0.530 |
Rocker Stud Thread Size | 7/16-24 |
Valve Angle | 23° |
Deck Thickness | 0.750 |
Installed Spring Height | 1.790 @ 130lbs |
Specifications
SKU | pf-PFEAHC18064SP |
Brand | PROFLOW |
Shipping Weight | 50.0000kg |
Shipping Width | 0.700m |
Shipping Height | 0.300m |
Shipping Length | 0.700m |
