PRL DROP IN TURBOCHARGER UPGRADE for FK8 CIVIC TYPE-R P600 2017+

Calculate Shipping

Australia wide rate - $45.00

Description

item: PRL 2017+ FK8 CIVIC TYPE-R P600 DROP IN TURBOCHARGER UPGRADE

Fits all 2017-2021 Honda Civic Type-R
Fits all 2018+ Honda Accord 2.0T with PRL Install Kit or Modification
Fits all 2019+ Acura RDX 2.0T with PRL Install Kit or Modification
Fits all 2021+ Acura TLX 2.0T with PRL Install Kit or Modification
Fits all variant models including RHD, 10AT, 6MT, International Models, Etc.

Overview

Important Notes:

REQUIRES ECU CALIBRATION (HONDATA BASEMAP FOR FK8 CIVIC TYPE-R COMING SOON)
100% DROP-IN, FACTORY LOCATION TURBO CHARGER UPGRADE

Install Notes:

Please make sure (both) supplied copper crush washers are installed correctly (one on top and one on bottom of banjo fitting, sandwiched by banjo bolt. Factory banjo bolt torque spec is 35 nm or 25.86 ft/lbs.

Technical Notes:

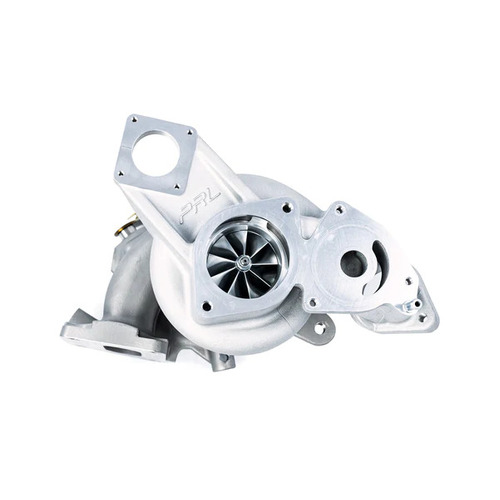

The PRL Motorsports P600 Drop-In Turbocharger Upgrade for Turbo FK8 Civic Type-R platform (which can also be installed on the 2.0L Turbo Honda Accord and Acura RDX) offers 600 horsepower capabilities for Honda's 2.0L Turbo K20C Engines without sacrificing spool. A billet 304 stainless steel, dual ceramic ball bearing CHRA was implemented for reduced weight and improved durability. Factory oil and coolant lines are retained, as well as the factory bypass valve and wastegate actuator. Increased cooling capacity has been provided by the CHRA's larger water jacket.

Our High Efficiency compressor wheel is significantly taller than most billet compressor wheel upgrades and features the latest technology in aerodynamics (tapered tip exducer, cutback design on blade top edge) for optimal spool and power. This High Efficiency Turbine Wheel also features the latest technology in aerodynamics for optimal spool and power.

Turbocharger Specs:

Cast 304 Stainless Steel, Dual Ceramic Ball Bearing CHRA
Cast Aluminum, Stock Location Compressor Housing w/ Anti-Surge Inlet
Cast 304 Stainless Steel Turbine Housing
High Efficiency Point-Milled 9-Blade Billet 7075 Aluminum Compressor Wheel (54mm Inducer, 67mm Exducer)
High Efficiency Inconel 713C 9-Blade Turbine Wheel (54mm Inducer, 49mm Exducer)
