SKU: PSP-OIL-100

Perrin PSP-OIL-100 Oil Cooler Kit (WRX 01-05/STi 02-20)

Oil Cooler Kit WRX 01-05/STi 02-20

$1,827.05

or 4 payments of $456.76 with Info



In Stock


Calculate Shipping



Australia wide rate - $50.00

Description

Item: Perrin PSP-OIL-100 Oil Cooler Kit (WRX 01-05/STi 02-20)

WHY DO I WANT THIS?

In racing conditions engine oil temperature skyrockets. This causes decreased engine performance and reduces the oil's ability to properly lubricate. A well designed engine oil cooling system like the PERRIN Oil Cooler Kit will help keep temperatures within the desired temperature range, thus maintaining performance and prolonging engine life.



HEAT EXCHANGER

Each PERRIN oil cooler uses a Setrab core which maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with airway corrugations providing optimum heat transfer, while the oil passages use "turbulators" to break down boundary layer effects in the oil flow.

Setrab Oil Coolers employ an in-line turbulator to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with the least pressure lost. The turbulators are fully brazed to the entire internal length of the tube resulting in zero heat transfer barrier and high strength.



INTEGRATED THERMOSTAT

The PERRIN Performance filter adapter features an integrated 85?C (185?F) thermostat. This means oil will not start flowing through the oil cooler until oil temps reach an optimum temperature of 85?C.

In addition to the OEM oil filter from Subaru, we include a PERRIN spacer which allows for easier installation of the thermostat-filter assembly.



MOUNTING BRACKETS

The PERRIN Oil Cooler comes with custom brackets that allow the oil cooler core to mount directly to existing holes in the OEM core support of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.



PREASSEMBLED HOSES

PERRIN's STI/WRX oil cooler kit uses lightweight Aeroquip brand -10 hose that is rated for 250psi and 300?F continuous temperature. Each hose consists of anodized -10 push-lock type aluminum hose ends. These fittings are designed to fit without the need for clamps, but we take the extra step and add a clamp ensuring they will never come apart. Unlike other kits that make you assemble your hoses, PERRIN preassembles them for you!

Specifications

  • Oil Cooler Core Dimensions: 13" x 4" x 2"
  • Core Delta PSI: 4.0/4.5
  • Core BTU/hr Range: 19,000-26,000
  • Additional Oil Added: 1 Qt
  • Mounting Brackets: 6061 T6 aluminum
  • Filter Spacer: 6061 T6 aluminum
  • Oil Cooler Thermostat: 85?C Activation Temp
  • Hose Size: -10
  • Hose Construction: Steel braided w/elastomer cover

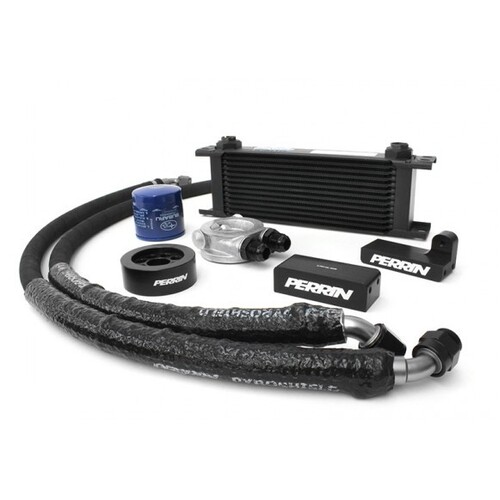

What's Included

  • (1) Oil Cooler Core
  • (2) Preassembled High Pressure Oil Lines
  • (2) Mounting Brackets
  • (1) OEM Oil Filter
  • (1) Oil Filter Spacer
  • (1) Oil Cooler Thermostat Sandwhich Adapter
  • Required Mounting Hardware
  • Instructions

compatibility

  • 2001-2005 Subaru WRX
  • 2002-2020 Subaru WRX STI

Specifications

SKU PSP-OIL-100
Brand PERRIN
Shipping Weight 30.0000kg
Shipping Width 0.800m
Shipping Height 0.250m
Shipping Length 0.250m
