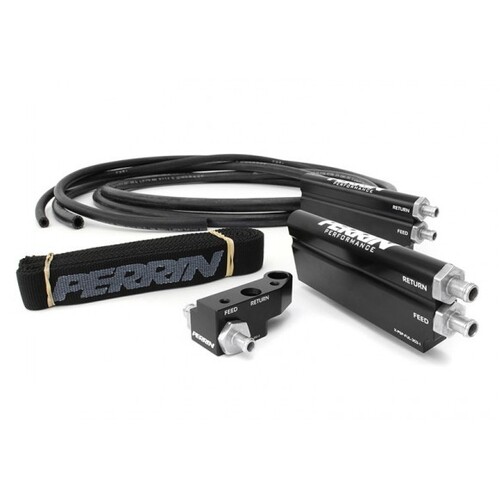

Perrin PSP-FUL-201 Top-Feed Fuel Rail Kit (WRX 01-14/STi 01-07)
WRX 01-14/STi 01-07
Description
Item: Perrin PSP-FUL-201 Top-Feed Fuel Rail Kit (WRX 01-14/STi 01-07)
The PERRIN High-Flow Fuel rails are designed to deliver large amounts of fuel equally to each cylinder. Consumers running big horsepower that require large injectors will notice the car runs smoother and is more powerful and tuners can safely push the engine closer to the edge.
HIGH-FLOW & -6 FITTINGS
PERRIN High-Flow Fuel Rails incorporate large inside diameter channels for maximum fuel flow. This allows for cars to run 800 WHP without inconsistent fuel flow to each cylinder. We include custom made -6 barbed fittings with O-rings to ensure a proper connection to the hose. These fittings are removable allowing for easy customization of aftermarket fuel lines.
EQUAL LENGTH
The equal flowing nature of PERRIN fuel rails allow your high powered Subaru to make more power, safer. A must have for any car looking to exceed 400 horsepower.
PERRIN High-Flow Fuel Rails split incoming fuel for equal fuel distribution, pressure, and more consistent air fuel ratio between all cylinders. The stock fuel rails route the fuel through the engine bay sequentially providing each injector with fuel. In modified Subarus, this drastically reduces fuel delivery to the last injector in line.
COMPLETE KIT
The PERRIN fuel rails and distribution block are precision CNC machined from 6061 billet aluminum. Each -6 Barbed Fitting is removable from the rails and distribution block allowing for easy customization of aftermarket fuel lines.
PHENOLIC SPACERS
All PERRIN High-Flow Fuel Rails come with built-in phenolic spacers. The spacers fitted to fuel rails and junction blocks sit between these and the engine, insulating it from heat. This keeps fuel closer to its normal ambient temperature. In contrast, without these spacers, you can see fuel temperatures rise far more than 30 degrees above ambient.
HOSE
PERRIN fuel rails feature large 3/8รถ inside diameter fuel injection hose which provides higher flow rate than competitive systems. This hose is large enough to support 800+ WHP. Included hose is a DOT approved, rubber fuel injection hose with proper liners for zero emissions. A byproduct of the hose being constructed of rubber is that it helps dampen the fuel against pressure waves and, in turn, creates a smoother and more constant fuel pressure.
Specifications
- Material: 6061 billet aluminum
- Finish: Anodized Black
What's Included
- (2) Fuel Rails
- (1) Distribution Block
- (10') 5/8" PERRIN Flexguard
- (10') 3/8" DOT Fuel Injection Hose
- (3') 5/16" DOT Fuel Injection Hose
- (3') 1/4" Fuel Hose
- (1) 5/16" Barb with 1/4 BP
- (1) Female Quick Connector
- (3') 5/32" Vacuum Hose
- (2) 3/8" Tees
- (1) 1/4" Tee
- (2) 1/4" Straight Connectors
- (1) 1/4" NPT 5/16" Brass Barbs
- (16) Oetiker SS Clamps
- (5) M8x20mm SS Socket Head Bolt
- Instructions
compatibility
- 2002-2007 Subaru WRX STI
- 2001-2014 Subaru WRX
Specifications
SKU | PSP-FUL-201BK |
Brand | PERRIN |
Shipping Weight | 28.0000kg |
Shipping Width | 0.800m |
Shipping Height | 0.250m |
Shipping Length | 0.250m |
