SKU: map-bdfhf-5br

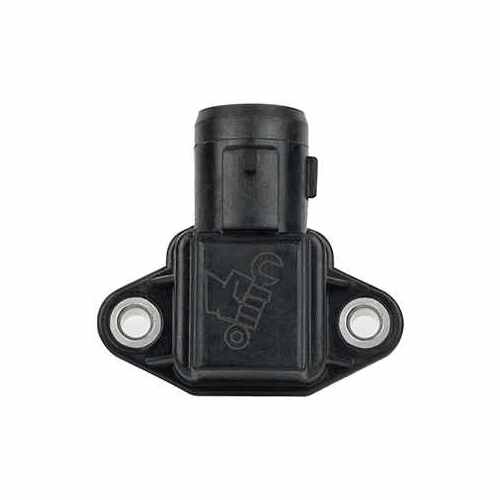

OMNI POWER MAP Sensors FOR B Series 90-01 Integra/Del Sol map-bdfhf-5br

MAP sensor 5 bar B Series Engines

$242.75

or 4 payments of $60.69 with Info



In Stock


Calculate Shipping



Australia wide rate - $25.00 (ETA: 3 days)

Description

Omni Power USA 2.5, 3, 4 & 5 Bar MAP (Manifold Absolute Pressure) sensors use state of the art bipolar op amp circuitry with thin film resistor networks built into each micro chip. Pressure changes are calculated on a true linear 0-5 volt scale via a specially designed silicon pressure sensor that also compensates for temperature changes.

The unique ability to compensate for temperature changes allows the Omni Power USA MAP sensor to remain a minimum of 99% accurate from 32 degrees F to 180 degrees F through out its range of scale. With the true linear pressure vs. voltage scale there is never a need to re-tune at different altitudes as with other sensors.

Other sensors on the market don't have true linear scaling which can cause your engine to go out of tune with elevation changes, often resulting in idle problems, poor driveability, and catastrophic engine damage.

Omni Power 4 bar MAP sensors can precisely calculate boost pressure from 1-43+ psi (7 bar 1-80+ psi,) while still allowing smooth stock OEM drivability at any boost level. Conveniently packaged in an OEM dimensional housing for easy install and an OEM look.


Key features:

  • Cases are designed to withstand in excess of 130 PSI without leaking
  • -40 to 260 degrees Fahrenheit temperature operating range
  • Able to respond from 10% of the pressure scale to 90% of the pressure scale in .001 seconds (the fastest response time of any MAP sensor on the market).
  • Automatic temperature compensation.
  • True linear scaling for perfect driveability at all boost and vacuum levels.
  • Compatible with all aftermarket engine management systems.
  • Minimum of 99% accurate over full scale range under all conditions including temperature, altitude, and humidity changes.
  • Allows smoother engine operation, higher boost levels, and better driveability than competitors turbo MAP sensors.
  • Direct plug and play for an easy install and an OEM look. Dimensionally identical to the stock MAP sensor.
  • Each sensor is hand assembled, pressure, and function checked in the USA for unparalleled quality control prior to shipping.

Applications:

  • Honda civic 88-00 all models
  • Honda accord 94-02 all models including V6
  • Honda CRV 97-01 all models
  • Honda Del Sol 93-97 all models
  • Honda Odyssey 95-01 all models
  • Honda Prelude 92-01 all models
  • Honda S2000 00-05 all models
  • Acura CL 97-99 all models
  • Acura CL 01-03 V6 models (premium only)
  • Acura Integra 90-01 all models (90-93 models will require 94+ throttle body for correct mounting, available at select Omni Power USA dealers)
  • Acura TL 99-03 all models


    Specifications

    SKU map-bdfhf-5br
    Brand OMNI POWER
    Shipping Weight 5.0000kg
    Shipping Width 0.300m
    Shipping Height 0.200m
    Shipping Length 0.250m
