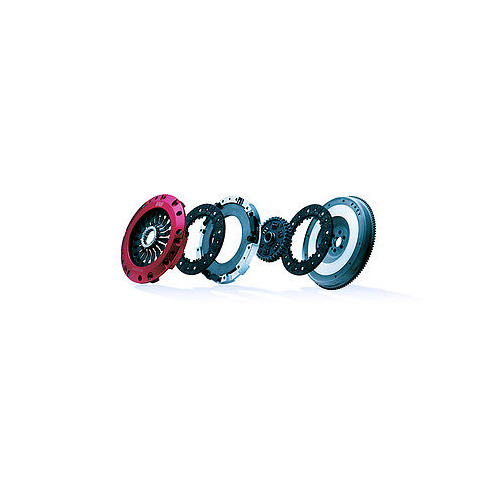

Item: Nismo SUPER COPPERMIX TWIN PLATE CLUTCH FOR PS13/KPS13 (SR20DET)3002A-RS541

Allowable dynamic friction torque measured at 84 kgf·m (static friction: 143 kgf·m) Can handle an estimated power of 670 ps

This multi-plate clutch system takes the "ease of use" and "high power handling" fortes of COPPERMIX to the next level.

* Numerical values are NISMO measurement values standardized using a push-type clutch combined with an RB26DETT engine. Evaluations were based on street and circuit driving. No quarter-mile evaluation was made.

ightweight Flywheel

The ideal weight for maximum torque was obtaine by using a lightweight flywheel manufactured from specially crafted chrome-molybdenum high carbon steel.

Aluminum cover and lightweight flywheel set

An aluminum cover with excellent heat radiation was fabricated specially to fit the new lightweight chrome-molybdenum flywheel. Together they guarantee the ideal weight allowance for the greatest torque.

Center plate with special dual-role strap functionality

The center plate is equipped with a strap function^*1 that also prevents any problems with disengagement.

*1 This mechanism leverages the reaction force accumulated by the strap plate to cause the pressure plate to constantly move away from the disc. It is employed as a standard part in manual transmissions and is installed in all production vehicles
