Nismo SUPER COPPERMIX TWIN PLATE CLUTCH FOR HCR32 (RB20DET)3002A-RR593-C
Part Number: 3002A-RR593-C
In Stock
Description
Item: Nismo SUPER COPPERMIX TWIN PLATE CLUTCH FOR HCR32 (RB20DET)3002A-RR593-C
Allowable dynamic friction torque measured at 84 kgf·m (static friction: 143 kgf·m) Can handle an estimated power of 670 ps
This multi-plate clutch system takes the "ease of use" and "high power handling" fortes of COPPERMIX to the next level.
* Numerical values are NISMO measurement values standardized using a push-type clutch combined with an RB26DETT engine. Evaluations were based on street and circuit driving. No quarter-mile evaluation was made.
ightweight Flywheel
The ideal weight for maximum torque was obtaine by using a lightweight flywheel manufactured from specially crafted chrome-molybdenum high carbon steel.
Aluminum cover and lightweight flywheel set
An aluminum cover with excellent heat radiation was fabricated specially to fit the new lightweight chrome-molybdenum flywheel. Together they guarantee the ideal weight allowance for the greatest torque.
Center plate with special dual-role strap functionality
The center plate is equipped with a strap function*1 that also prevents any problems with disengagement.
*1 This mechanism leverages the reaction force accumulated by the strap plate to cause the pressure plate to constantly move away from the disc. It is employed as a standard part in manual transmissions and is installed in all production vehicles

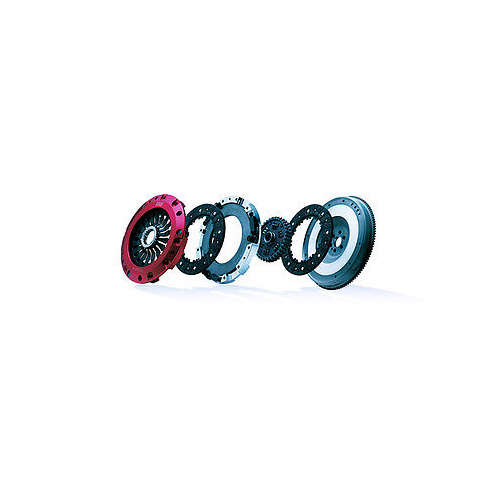

Kit Contents
- Flywheel bolts
- Release bearing (genuine Nissan part)
- Sticker
- Two COPPERMIX clutch discs
- Aluminum clutch cover
- Lightweight flywheel
- Aluminum center plate
MODEL | YEAR | PART_NUM |
HCR32 (RB20DET) | 5/89-7/93 | 3002A-RR593-C |
Specifications
SKU | nis-tw-16-3002A-RR593-C |
Brand | NISMO |
Shipping Weight | 25.0000kg |
Shipping Width | 0.330m |
Shipping Height | 0.900m |
Shipping Length | 0.330m |
