Brand: Nismo

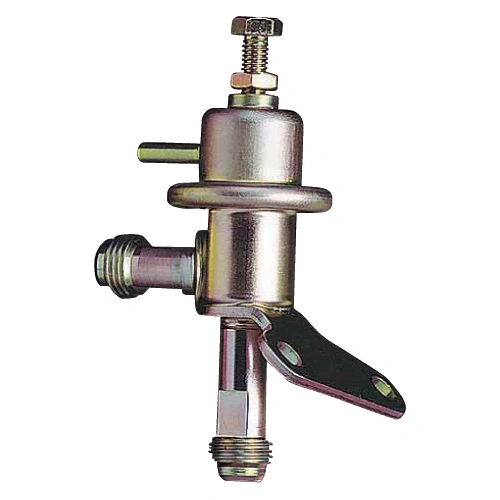

Product: Adjustable Fuel Pressure Regulator - Universal AN6
Part Num: 22670-RR711

FEATURES:
Based on originally equipped light & small regulator , fuel pressure adjustment function is added. Adjustment range and relief ability is equal to that of standard regular sized type. By controlling fuel pressure, the most suitable setting can be made for the injector to deliver the best jetting performance.

PART INFORMATIONS:
Fuel line IN connection:
- AN6 screw connection

Fuel line OUT connection:
- AN6 screw connection

Connector part no.:
- 22672-RR711 (#6 fitting)

Attachment method:
- Match with bracket from body

SPECIFICATIONS:
- Fuel pressure adjustment range: 196-588kPa (flow volume 40L/h, 2 to 6kgf/cm2)
- Diaphragm diameter: 36.5
- Operating temperatures: -30 to 120 C
- Pressure slope: 157x10kPa/L/h
- Anti-vibration resistance: 250m/sec

PRODUCT NOTES:
- Resetting to match the engine control unit will be required.
