MXm

Calculate Shipping

Australia wide rate - $20.00 (ETA: 3 days)

Description

All Prices shown are in AUD and include Australian GST, if you are an international customer this will be deducted at Checkout.

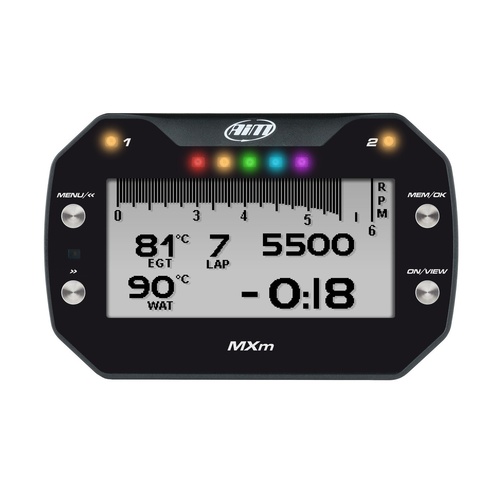

The MXm is the powerful AiM dashlogger providing all the info needed by racers: it samples and shows key info like speed, laptimes, rpM, all temperature/pressure data you need and much more. The MXm has been designed with the aim to make configuration and operation smooth and easy for the beginner or experienced user.

A wide range of data

sources

For the most demanding, the system can be connected to a lambda controller and to a SmartyCam.

Integrated Shift Light Array

There are 5 LEDs dedicated to shift lights for the MXm. Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required.

Flexible Alarms

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.

Sharp Liquid Crystal

The MXm features a high contrast LCD display with an outstanding black to white ratio, the graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the backlight at optimum brightness levels.

MXm features a wide 268x128 pixel graphical display. the screen can have a back-light configured in one of the seven available colors.

Choose your own data layout

You can organize the data with custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.

WiFi Connectivity

Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection.

Expansions

MXm can be connected to SmartyCam HD and GP, also the LCU-One Lambda Controller.

Technical Specifications

Display Resolution	268 x 128 pixels
Backlight	7 configurable RGB colors
Ambient Light sensor	Yes
Shift Lights	5 configurable RBG LEDs
Alarm LEDs	2 configurable RGB LEDs
CAN Connections	2
ECU Connections	CAN, RS232 or K-Line to 1,000+ industry leading ECUs
GPS	Integrated
External Modules	Lambda Controller, SmartyCam HD
Analog Inputs	4 fully configurable, max 1,000 Hz each
Digital Inputs	2 speed inputs, coil RPM input
Digital Outputs	2 high-side max 10 A
Inertial platform	Internal 3 axis ±5g accelerometer + 3 axis gyro + 3 axis magnetometer
WiFi connection	Yes
Internal memory	4 GB
Body	Glass fiber reinforced Nylon
Pushbuttons	Metallic
Connectors	37 pins Motorsport connector + 4 pins power connector
Dimensions	137x88, 4x31, 91mm
Weight	330g
Waterproof	IP65
