SKU: MT-6069-SB-230CD

Mountune High Performance 2.3L FOR Ford Focus ST/RS EcoBoost Short Block CLOSED DECK

MOUNTUNE

$10,989.00


In Stock


Calculate Shipping



Australia wide rate - $92.00

Description

ITEM: Mountune High Performance 2.3L FOR Ford Focus ST/RS EcoBoost Short Block CLOSED DECK

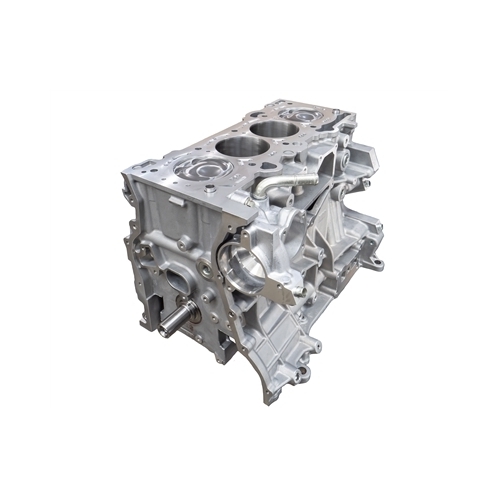

Mountune Closed Deck High Performance 2.3L Focus RS EcoBoost Short Block
Application: Ford EcoBoost 2.3L - Focus RS 2016-2018

Mountuneês extensive knowledge of the Ford EcoBoost engine coupled with broad motorsport experience provides the foundation for our Closed Deck High Performance 2.3L Ford EcoBoost short block. Each short block is skillfully assembled using a brand new genuine Ford RS engine block that has been precision machined to accept a Cylinder Support System. The Cylinder Support System is a proven method of strengthening open deck engine blocks while maintaining OEM integrity. It prevents cylinder cracking, walking, and bell mouthing. The support ring is made from aircraft grade 6061-T6 aluminum.
We then add Supertech Forged Pistons, Forged Connecting Rods, high performance bearings and an RS forged crankshaft. This short block is the perfect foundation for your Focus RS for high boost applications including track day use. We take the guess work out of critical engine assembly allowing you to install your existing cylinder head and other base engine components to this premium improved foundation. This engine specification is designed for typical track day use and those running up to 575hp power levels with supporting modifications.

Short Block Features
The genuine RS engine block is first inspected, de-burred, and the bores are honed to perfection to receive Supertech Forged Pistons. The rotating assembly that includes a new lightweight crankshaft and Supertech Forged Connecting Rods is balanced to within .5 gram. The select parts are professionally assembled by one of Mountune's skilled engine builders using tri-metal race spec bearings. Each assembly includes a detailed data sheet showing all critical engine dimensions.

Bore: 87.5mm
Stroke: 94 mm
Compression Ratio 9.5:1
Mountune Light Weight Crank Option

Includes
New Ford EcoBoost RS Engine Block with Cylinder Support System close deck upgrade
New Forged 94mm Crankshaft *Optional Lightweight Crank
Supertech Forged Connecting Rods
Supertech Forged Pistons and Rings
Mountune Tri-Metal Bearings with Locating Tang
Assembly balanced to within .5 gram
Complete blue-print assembly
Ring gap set
Bearing clearance set
Deck height checked
Connecting Rod side clearance set
Crankshaft end float set
Balance Shaft Delete included


WARNING:
This part has been designed and is intended for off-highway application only. Installation of this part on a vehicle that is driven on public roads may violate U.S. and Canadian laws and regulations relating to emission requirements and motor vehicle safety standards. Click Here for Emissions compliance information.

Specifications

SKU MT-6069-SB-230CD
Brand MOUNTUNE
Shipping Weight 70.0000kg
Shipping Width 0.900m
Shipping Height 0.300m
Shipping Length 0.700m
