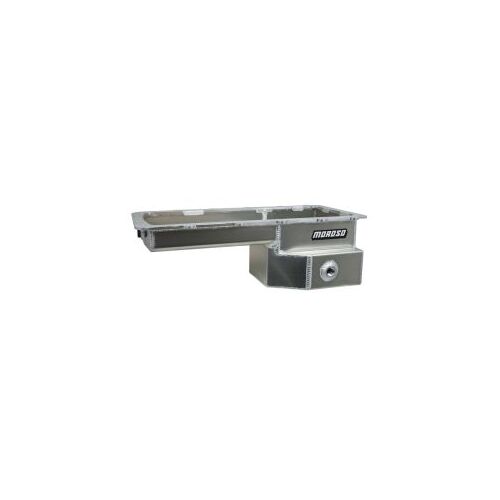

Aluminum, Wet Sump, 9 quart capacity, 6-5/8" Deep

Engine Application: Ford 5.0 Modular "Coyote" Engines

Fits: Mustang '11-Up & other Ford Rear Sump conversions with Ford "Coyote" or "Voodoo" Engines, (Check Dimensions)

• Available in either fully fabricated steel with clear zinc finish or fully fabricated aluminum
• Features trap door and removable anti-slosh baffle for improved oil control
• Designed to be used factory dipstick
• 1/2" N.P.T. fitting for supercharger/turbo drain back, and 1/2" N.P.T. fitting for oil temperature sender
• 20 mm fitting for factory oil level sender*
• Gen 1 & 2 Coyote use factory oil pickup, Gen 3 Coyote/Voodoo use Moroso No. 24578 pickup

*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.
