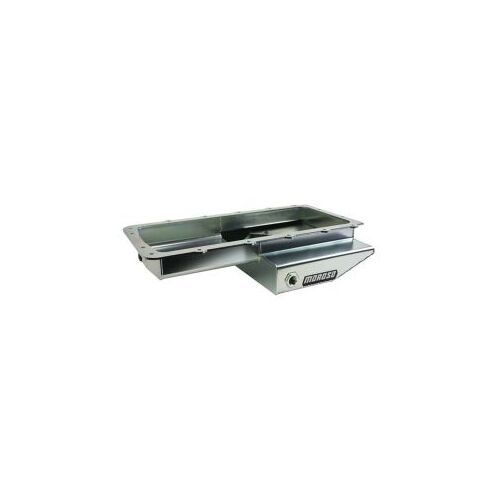

Steel, Wet Sump, 9-1/2 Quart Capacity, 4-5/8" Deep

Engine Application: Ford 5.0 "Coyote"/5.2 "Voodoo" Engines

Fits: Cobra Kit Cars that require a rear sump oil pan

• Designed for Cobra replica applications that require a shallow, rear-sump oil pan
• Available in fabricated steel with a clear zinc or black powder coat finish, or fabricated aluminum
• Features four trap door assembly with removable anti-slosh baffle for improved oil control
• 1/2" N.P.T. fitting for supercharger/turbo drain back, and 1/2" N.P.T. fitting for oil temperature sender
• 20 mm fitting for factory oil level sender*

*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.
